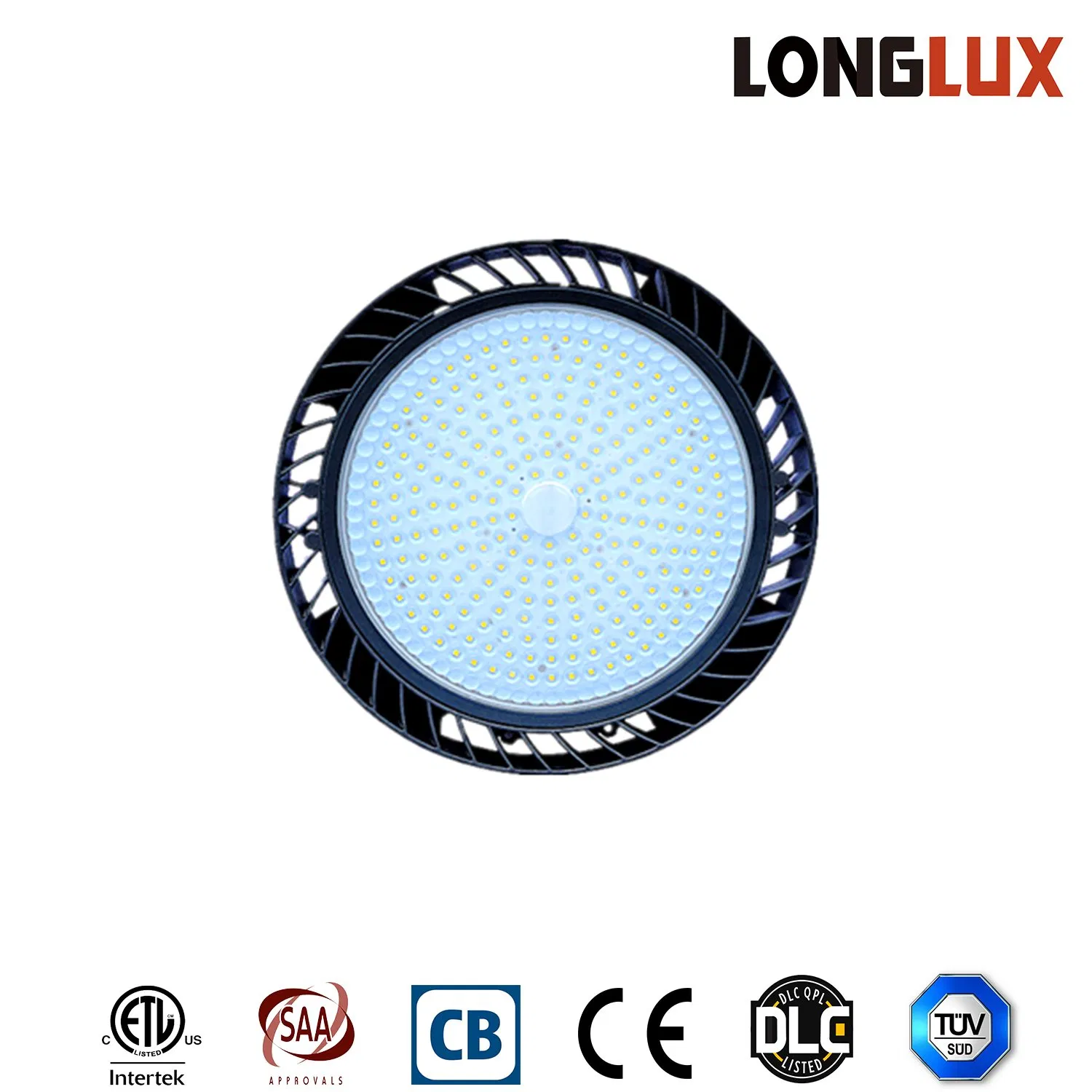

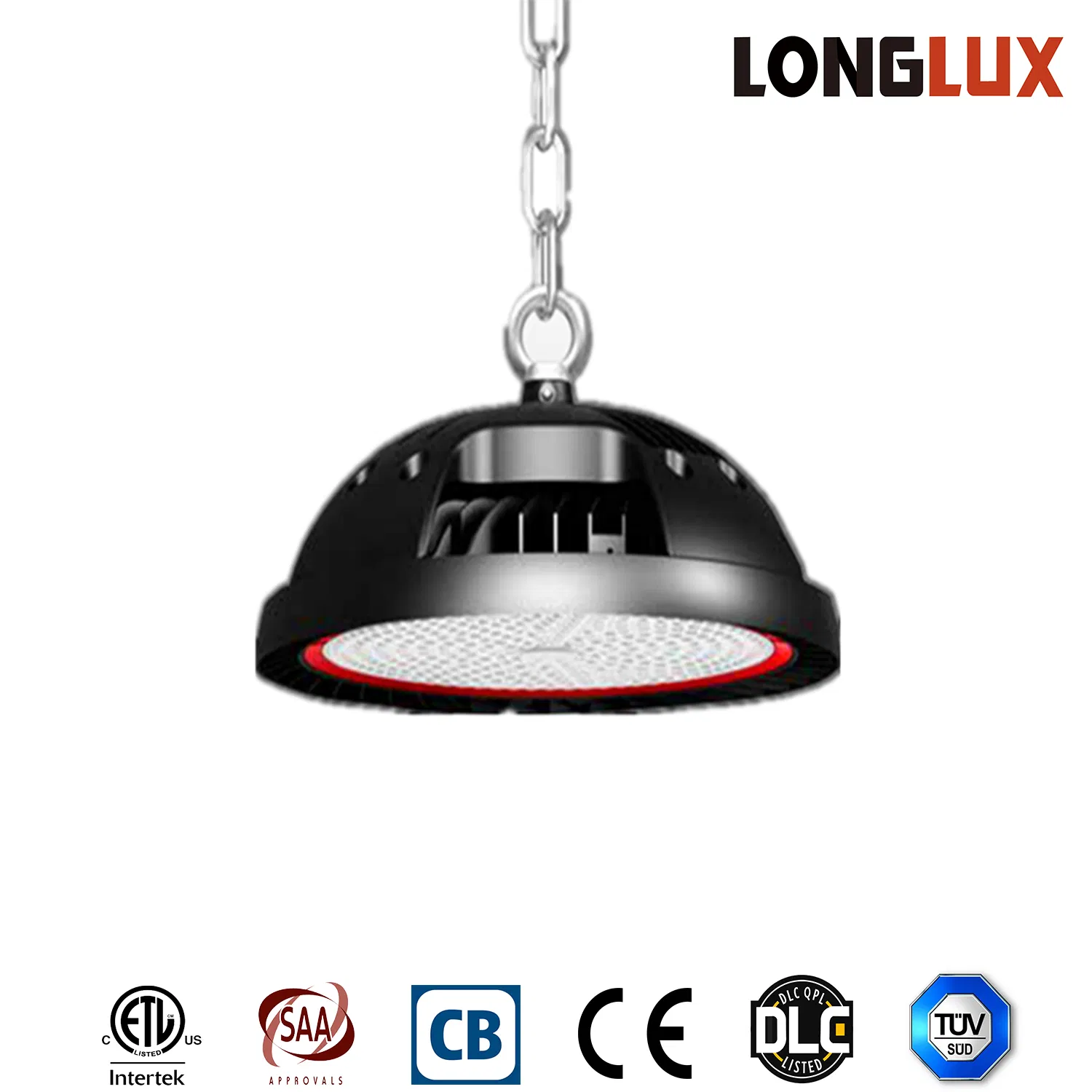

100W/ 150W /200W/240W LED High Bay Lamp for Industrial/Warehouse/Workshop Lighting
FeatureDesigned as a cost effective solution for energy savings and reduced maintenance over HID lighting systems up to 1000W. It is ideal for high and low bay settings in industrial, commercial, and retail applications.1. Perfect heat disspation, die-casting aluminum UFO shape body2. Private mould,......
Send Inquiry
Product Description
Feature
Designed as a cost effective solution for energy savings and reduced maintenance over HID lighting systems up to 1000W. It is ideal for high and low bay settings in industrial, commercial, and retail applications.
1. Perfect heat disspation, die-casting aluminum UFO shape body
2. Private mould, light weight, good quality
3. High transmittance PC lens

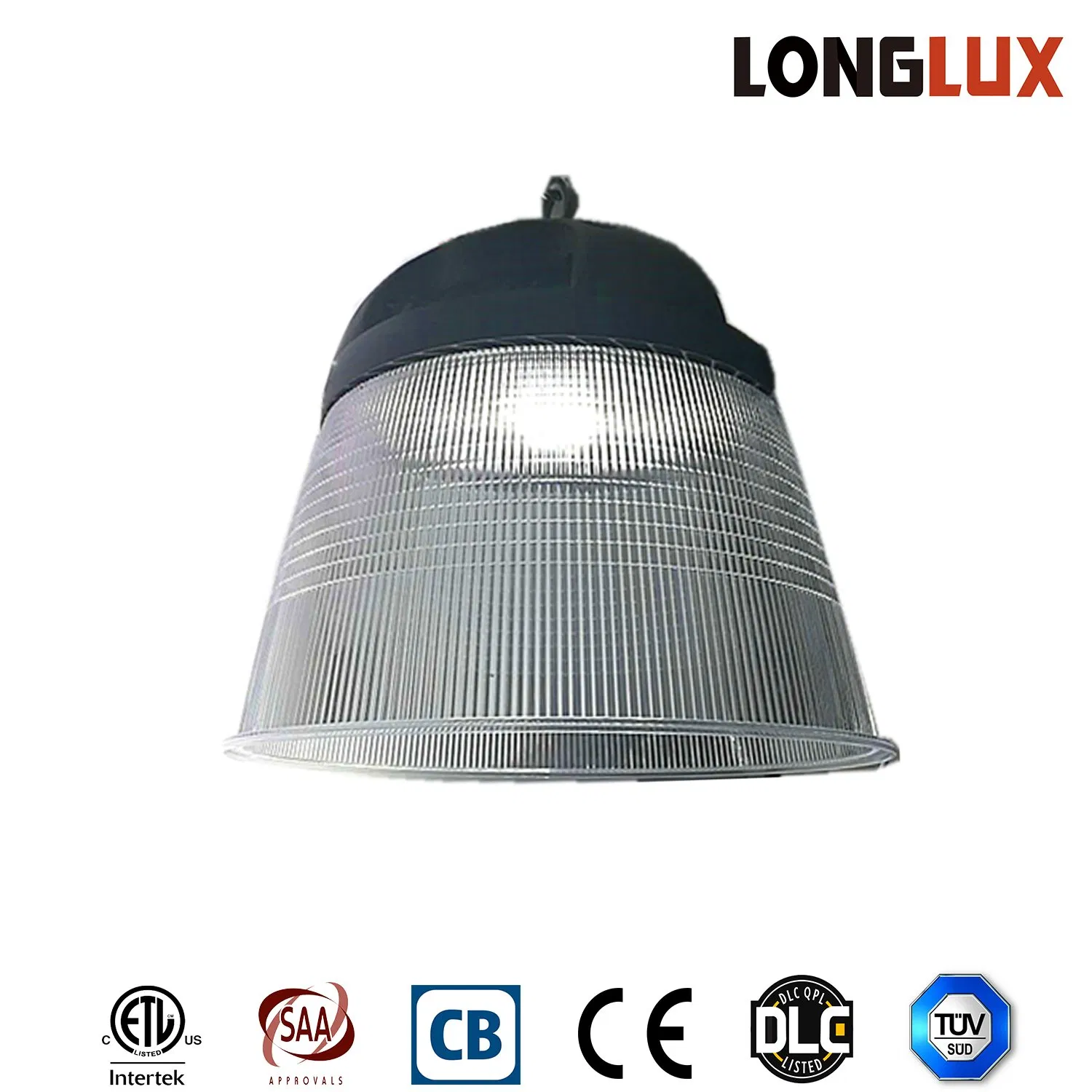

4. Different reflect shade is optional

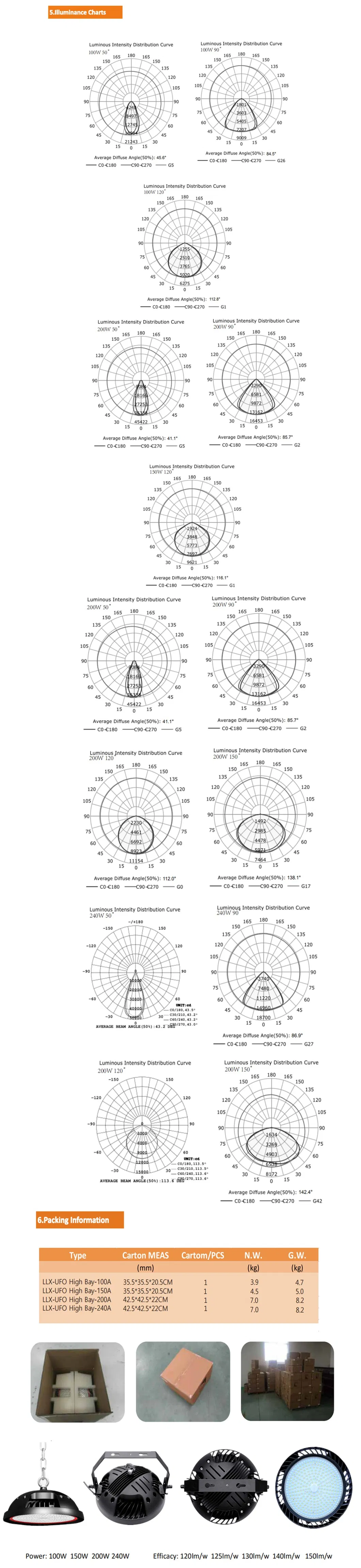

5. Beam angle:50°/90°/120°/150°
6. Motion sensor can be added to control the light automatically
Specification
Designed as a cost effective solution for energy savings and reduced maintenance over HID lighting systems up to 1000W. It is ideal for high and low bay settings in industrial, commercial, and retail applications.
1. Perfect heat disspation, die-casting aluminum UFO shape body
2. Private mould, light weight, good quality
3. High transmittance PC lens
4. Different reflect shade is optional
5. Beam angle:50°/90°/120°/150°
6. Motion sensor can be added to control the light automatically
Specification
| Model | LLX-UFO High Bay -100A | LLX-UFO High Bay -150A | LLX-UFO High Bay -200A | LLX-UFO High Bay-240A |
| Outlook Dimensions(MM) | φ300.6*170.5 | φ300.6*170.5 | φ360*188.6 | φ360*188.6 |
| Power(W) | 100 | 150 | 200 | 240 |
| Luminous Flux (LM) | 12500/14000/15000 | 18750/21000/22500 | 26000/28000 | 28800/31200/33600 |
| Efficacy(LM/W) | 125/140/150 | 125/140/150 | 130/140 | 120/130/140 |
| LED Brand | Nichia3030/lumiled 3030( | Nichia3030/lumiled 3030 | lumiled 3030 | Nichia3030 |
| LED Qty | 90/180 | 144/234 | 306 | 234/306 |
| CCT | 4000K/5000K/5700K | |||
| CRI | >80 | |||
| P.F. | >0.95 | |||
| Beam Angle | 50°/90°/120°/150 | |||
| LED driver | Meanwell ELG | |||
| Input Voltage | 100-305VAC,50/60Hz | |||
| Dimming | Yes(1-10V,PWM) | |||
| IP Rating | IP65 | |||
| Life Span | 50,000hrs | |||
| Cerficate | TUV-CE,ROHS,CB,GS/UL | |||
| Warranty | 5Years | |||
