Home > Products > LED High Bay Light > 150W CREE Chip High Bay LED Lighting/Factory LED Hi Bay Light
150W CREE Chip High Bay LED Lighting/Factory LED Hi Bay Light
150W CREE Chip High Bay LED Lighting/Factory LED Hi Bay lightProduct Specification Sheet:Item No.:RB-HB-515-150WInput Voltage:AC 100~277VFreqency Range:50Hz~60HzLED ChipBridgelux 45 milPower Driver:Mean WellPower Factor:>0.98Power Efficiency:>91%LED Power154WLED QTY: 1pc*150WLED Working Voltag......
Send Inquiry
Product Description
150W CREE Chip High Bay LED Lighting/Factory LED Hi Bay light
Product Specification Sheet:
Product Samples:
LED High Bay Light Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Our Company:
Quality is our culture:
1) Defective rate control around 1‰ , PF>0.95, can real pass CE, EMC. LVD in Europe, The driver have strictly inspection test before assembly.
2) Our production line have inspection people inspect product quality process.
Example: Light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on.
3)12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
Competitive Advantage:
1. CE & RoHS & TUV, SAA approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3-5 years warranty and 50.000 hours lifespan
Product Specification Sheet:
| Item No.: | RB-HB-515-150W | ||
| Input Voltage: | AC 100~277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| LED Chip | Bridgelux 45 mil | ||
| Power Driver: | Mean Well | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >91% | ||
| LED Power | 154W | ||
| LED QTY: | 1pc*150W | ||
| LED Working Voltage: | DC 42~48V | ||
| System Consumption: | 155W | ||
| LED Luminous Flux | Warm White | 14350LM | |
| Pure White | 15100LM | ||
| Cool White | 15300LM | ||
| Viewing Angle: | 45degree | ||
| Centre Illuminance | Height 3M | 1746LUX | |
| Height 4M | 982LUX | ||
| Height 5M | 629LUX | ||
| Illuminance Area | Height 3M | Dia.3.5 M Round spot | |
| Height 4M | Dia.4.6 M Round spot | ||
| Height 5M | Dia.5.8M Round spot | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 2700K~3500K | |
| Pure White | 4000K~5500K | ||
| Cool White | 6000K~7000K | ||
| Color Rendering Index | Ra>78 | ||
| Light Distribution: | LED points visible | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -40ºC~50ºC | ||
| IP Grade: | IP54/IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mthree line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Heatsink | Integration of Thermal conductivity Heat dissipation phase change technology | ||
| The color of the lamp shell | Black and silver is available | ||
| Certificate | CE /ROHS/UL | ||
| Net Weight: | 8.0KG | ||

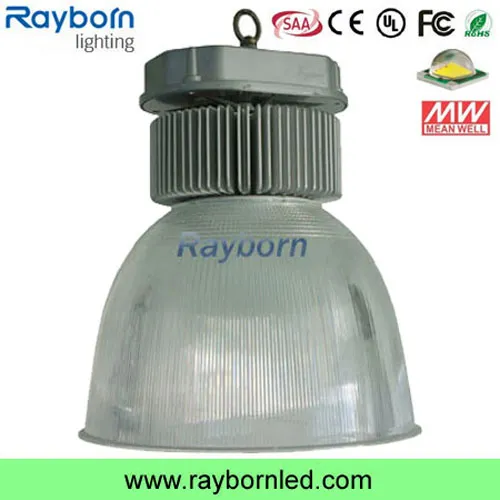

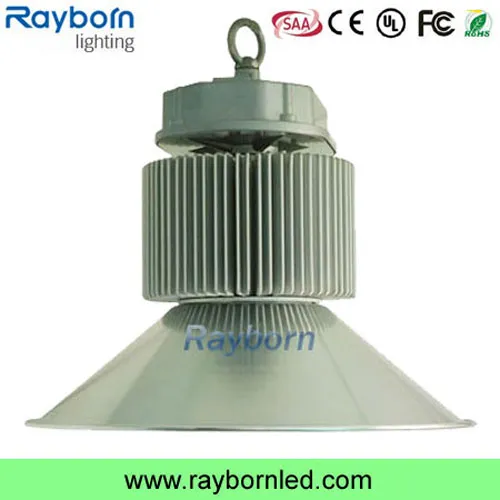

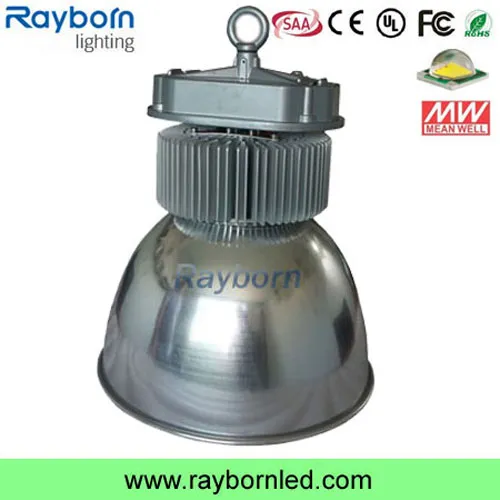

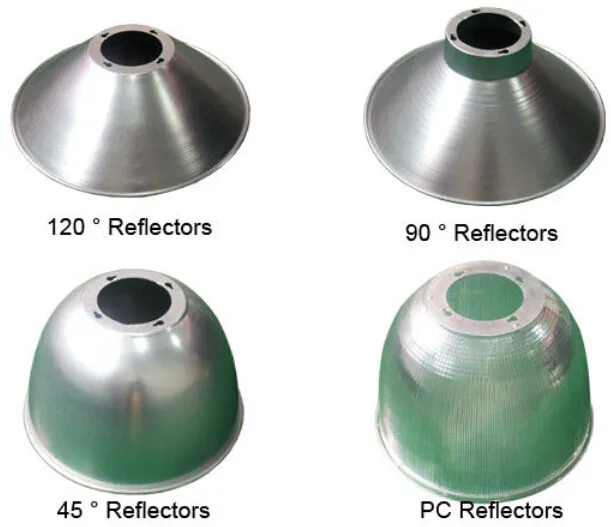

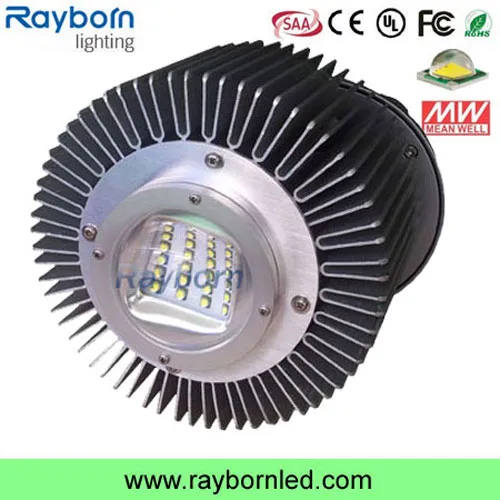

Product Samples:

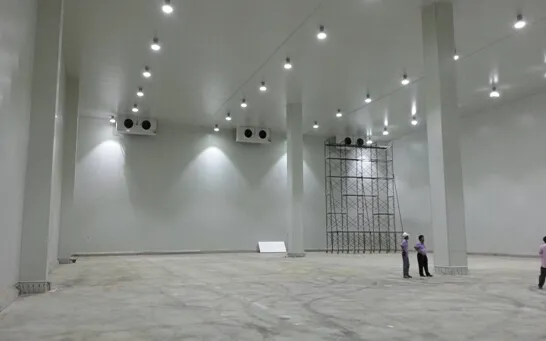

LED High Bay Light Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Our Company:
Quality is our culture:
1) Defective rate control around 1‰ , PF>0.95, can real pass CE, EMC. LVD in Europe, The driver have strictly inspection test before assembly.
2) Our production line have inspection people inspect product quality process.
Example: Light up test, power wattage test, high-Voltage test, waterproof test, ground connection test and so on.
3)12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
Competitive Advantage:
1. CE & RoHS & TUV, SAA approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3-5 years warranty and 50.000 hours lifespan
