China 150W LED Screw Cap and Aluminum Alloy Heat Dissipation Process LED High Bay Light

Product Description

Features:
1 LED mining lamp display high RA>90
2 LED industrial and mining light efficiency is high, more energy saving, equivalent to 80W LED industrial and mining light can replace the traditional 250W traditional industrial and mining light.
3. The traditional light source has the disadvantage of high lamp temperature, which can reach 200-300 degrees. And LED itself is a cold light source, the lamp temperature is low, more safe, belong to cold drive.
4 LED industrial and mining lights in continuous innovation, the latest aluminum alloy radiator industrial and mining lights more reasonable radiator design, greatly reduce the weight of industrial and mining lights, so that the 80W LED overall weight of industrial and mining lights down to less than 4KG, and can solve the heat dissipation problem of 80-300W LED industrial and mining lights.

Applications:
Widely used in industrial plants, Indoor gymnasium,badminton, basketball stadium, production workshops, supermarkets, sports and entertainment places and warehouses.

Advantage:

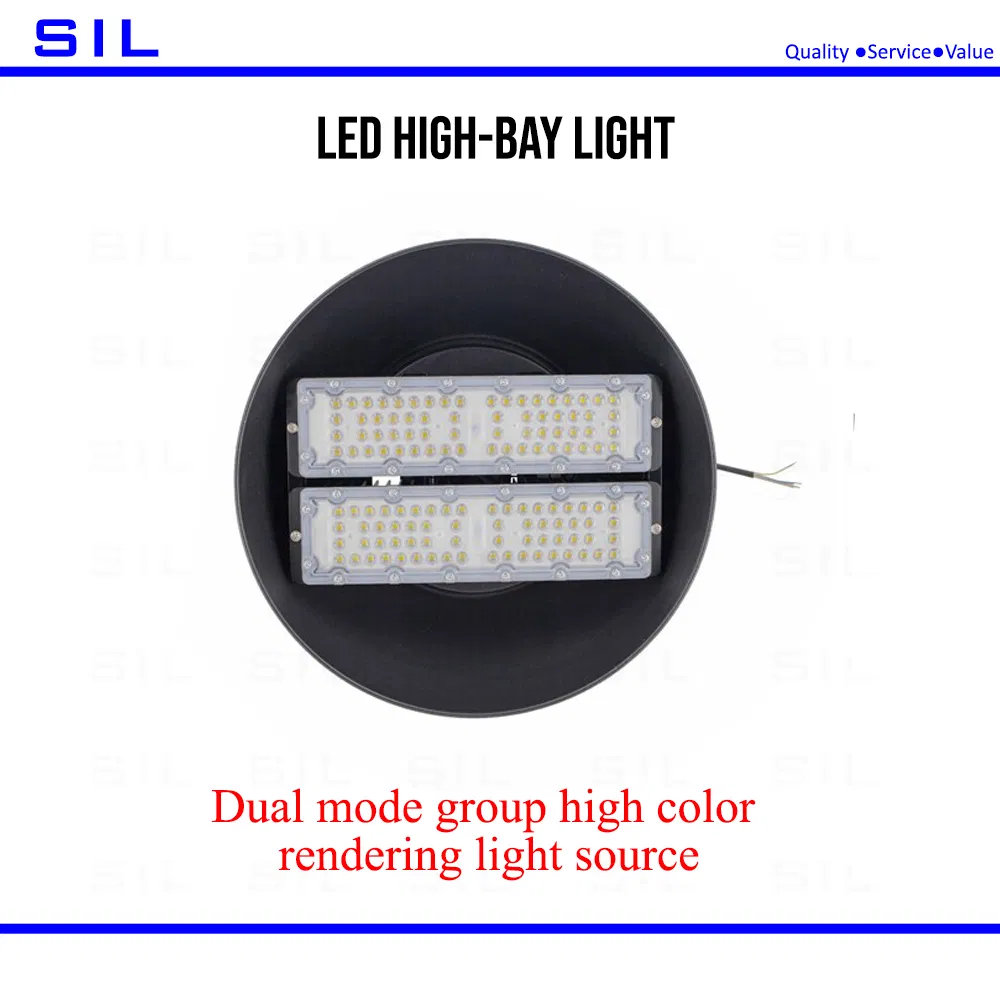

Dual mode group high color rendering light source

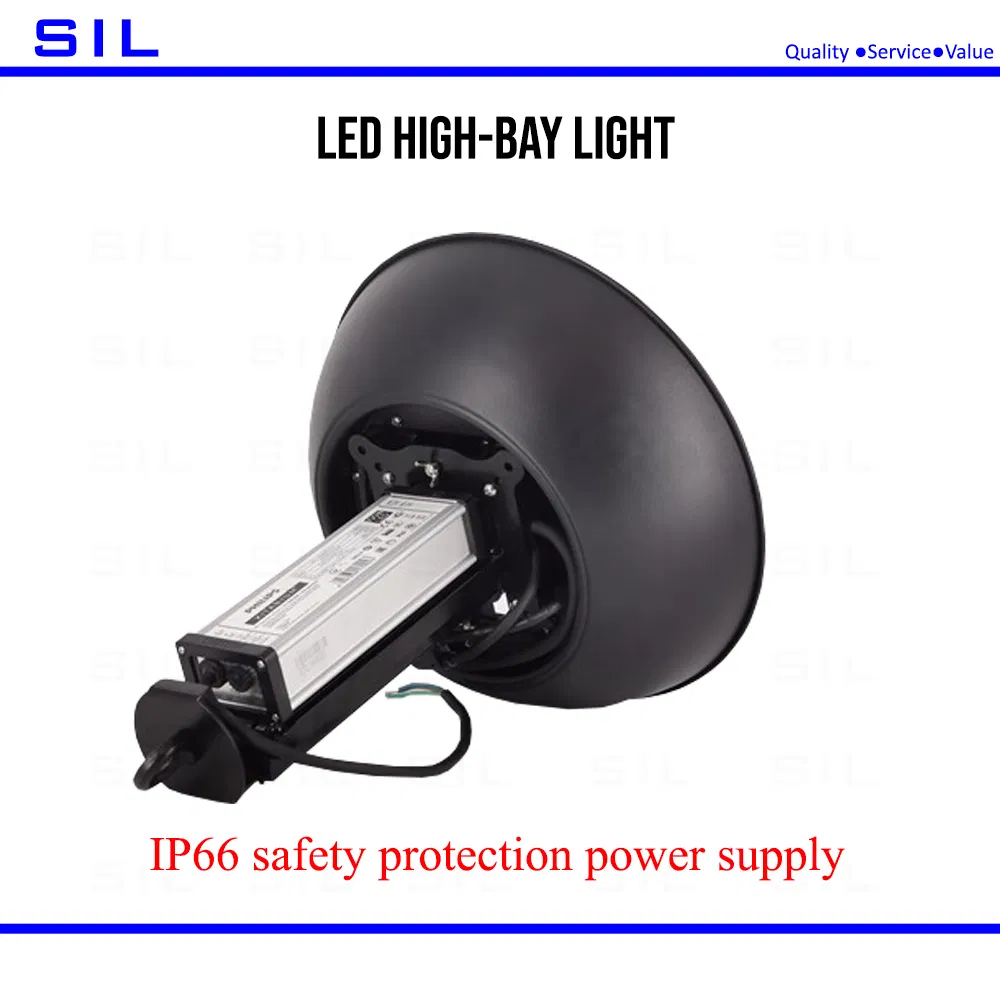

IP66 safety protection power supply

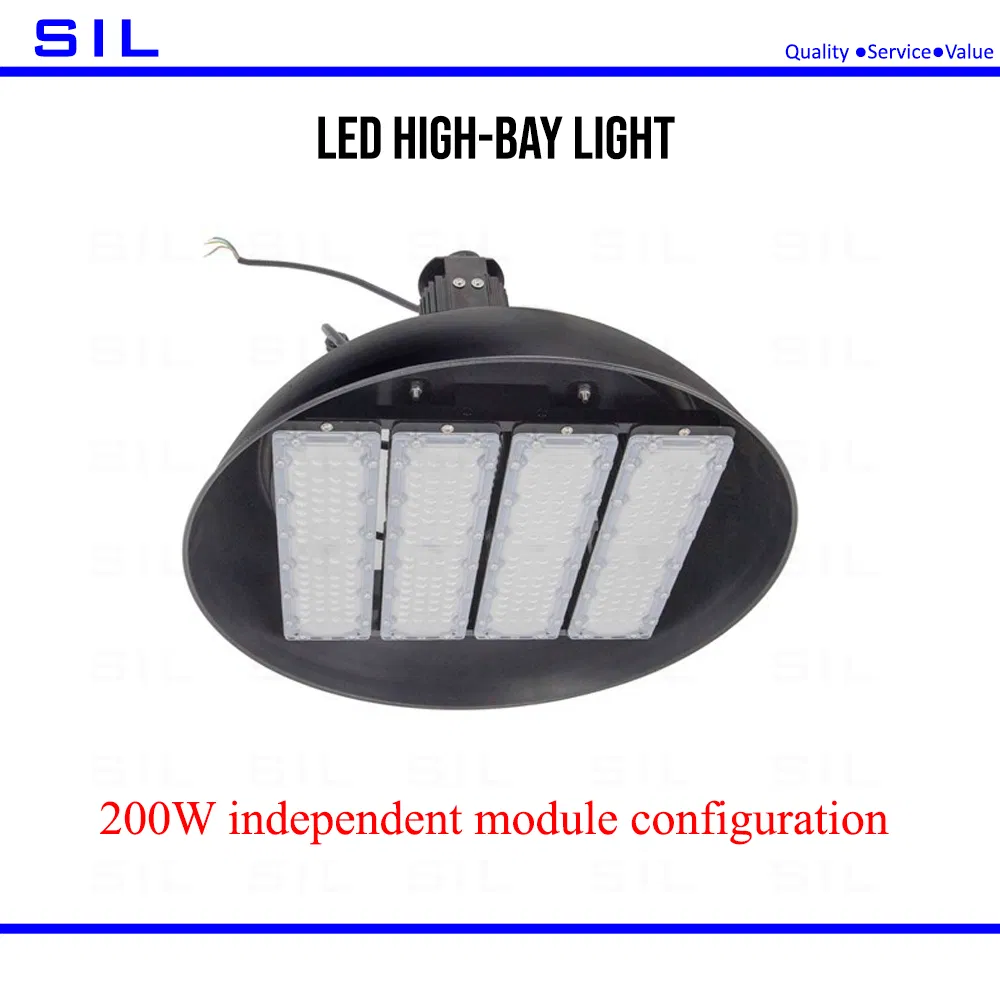

Independent module configuration

Technical Parameter:
Model No.	HLXSTLT0100	HLXSTLT0150	HLXSTLT0200
Rated Power	100W	150W	200W
Chip type	SMD3030	SMD3030	SMD3030
Chips Qty	1PCS*COB	1PCS*COB	1PCS*COB
Chips S/P	128P10S*1	192P10S*1	256P10S*1
Light effect	130LM/W	>130LM/W	>130LM/W
Color Temp.	3000K/4000K/5000K/5700K/6500K,Optional
Beam Angle	60/90/140*75°, Optional
Color Rend.	CRI >82/92	CRI >82/92	CRI > 82/92
Input Volt.	100-277V	100-277V	100-277V
Power factor	>0.95	>0.95	>0.95
Drive type	MW, INVENTRONICS or others, according to customer needs
Drive type	No flicker,Conventional/0-10V, optional;
Material	Die-cast aluminum lamp body + PC lens + 304 stainless steel screws

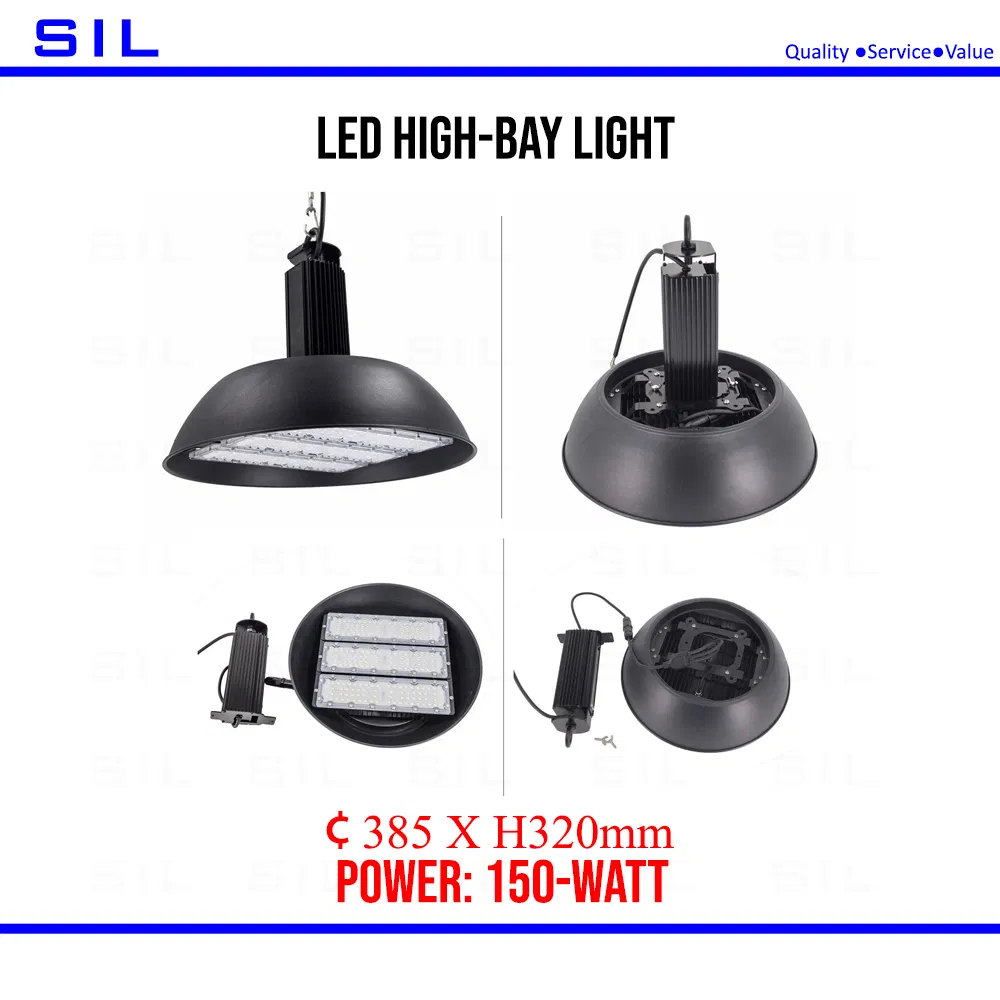

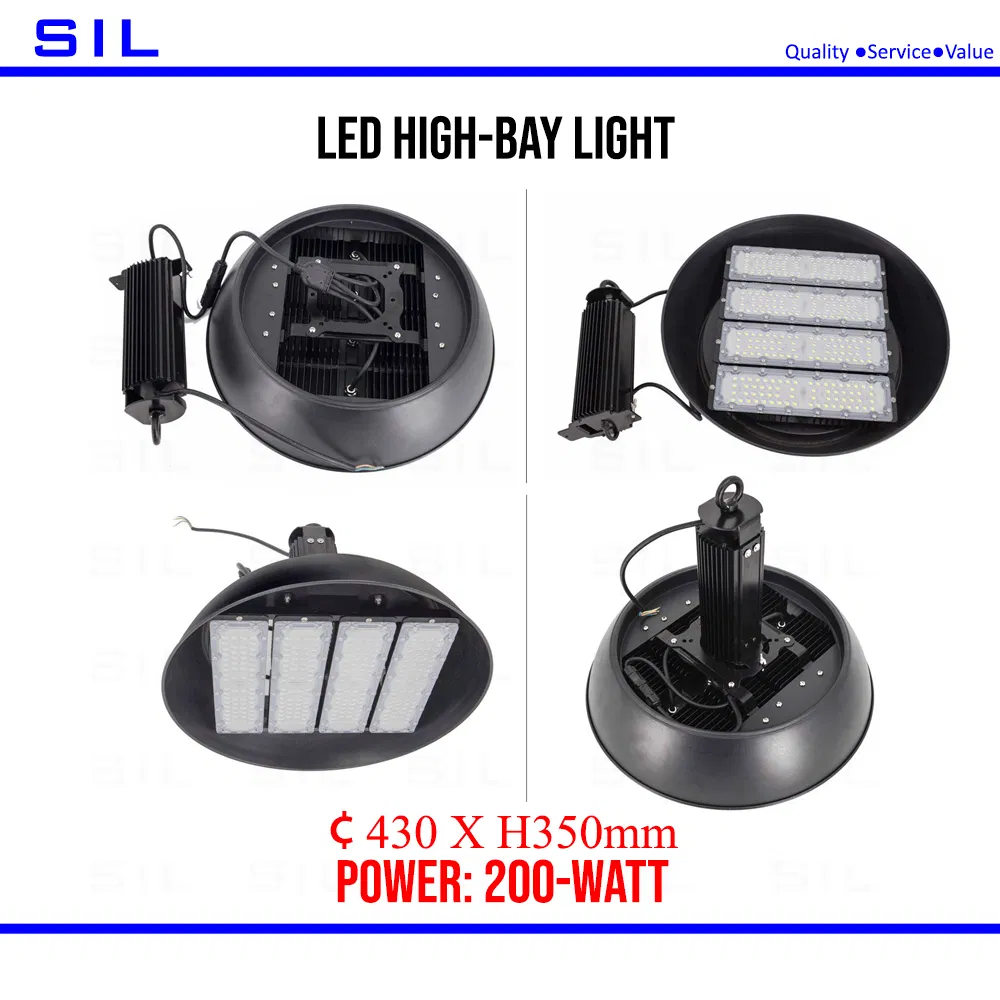

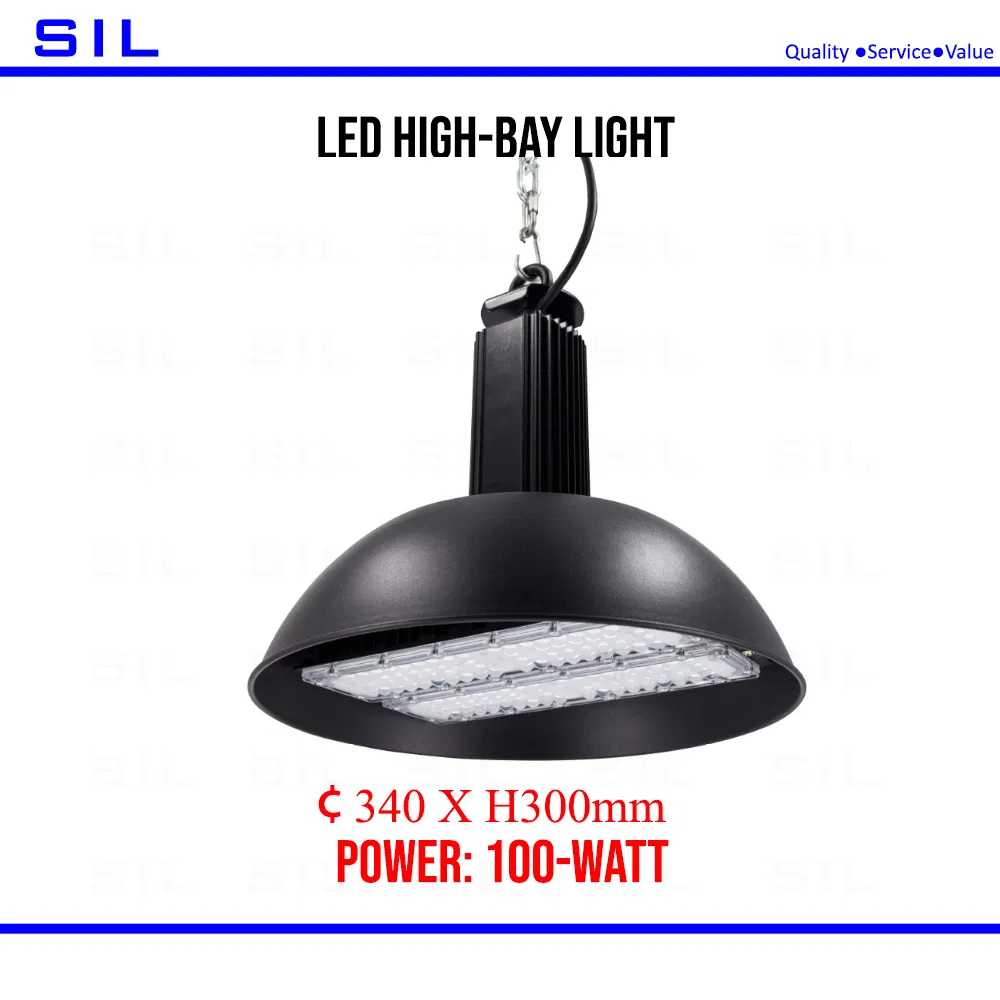

Lamp size	¢340X H300mm	¢385XH320mm	¢430X H350mm
Install the handle	Lifting/hoisting	Lifting/hoisting	Lifting/hoisting
Protection level	IP66/IK08	IP66/IK08	IP66/IK08
Lightning protection	1KV OR 3KV	1KV OR 3KV	1KV OR 3KV
Operating temperature	-30ºC~+45ºC	-30ºC~+45ºC	-30ºC~+45ºC
Working humidity	10%~90%	10%~90%	10%~90%
Life/Warranty	50,000hrs/5 Years	50,000hrs/5 Years	50,000hrs/5 Years

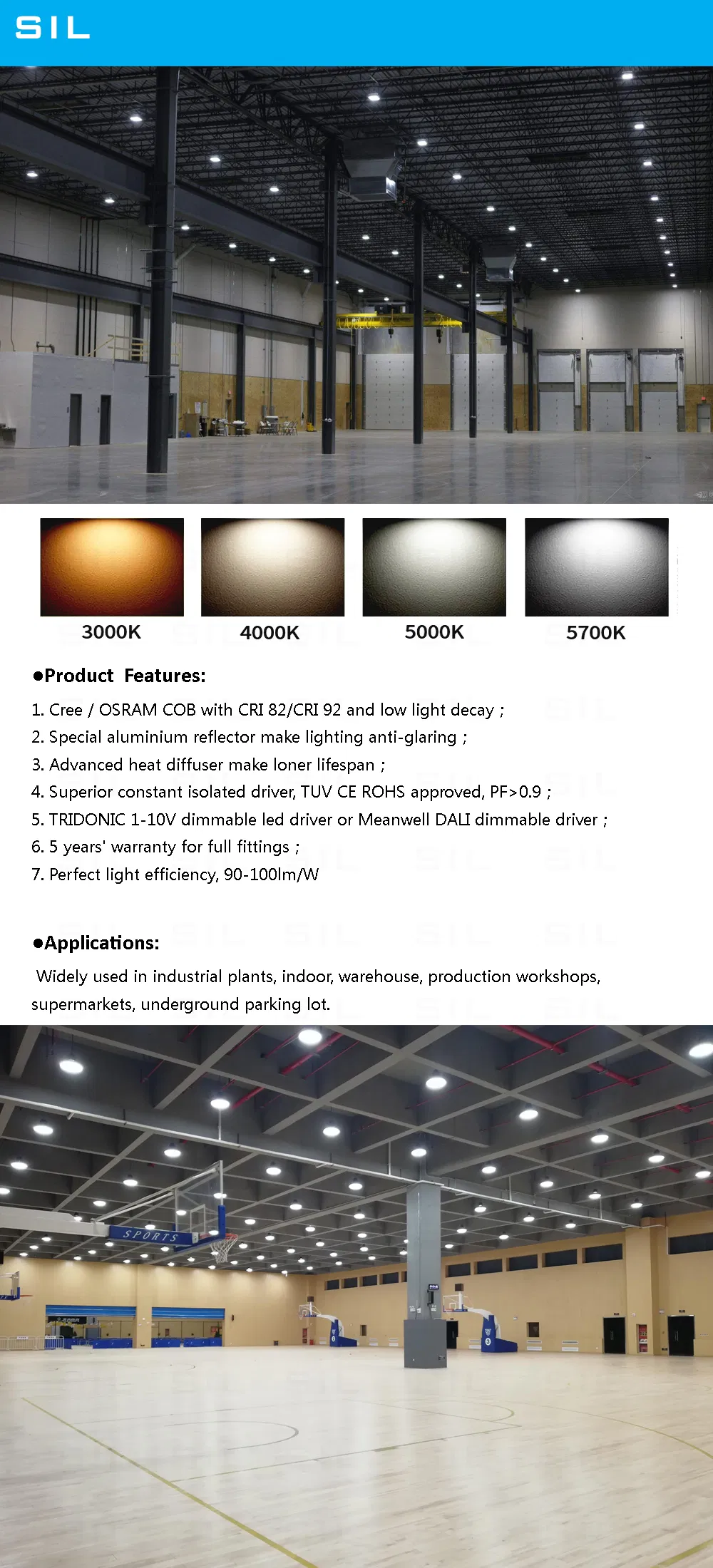

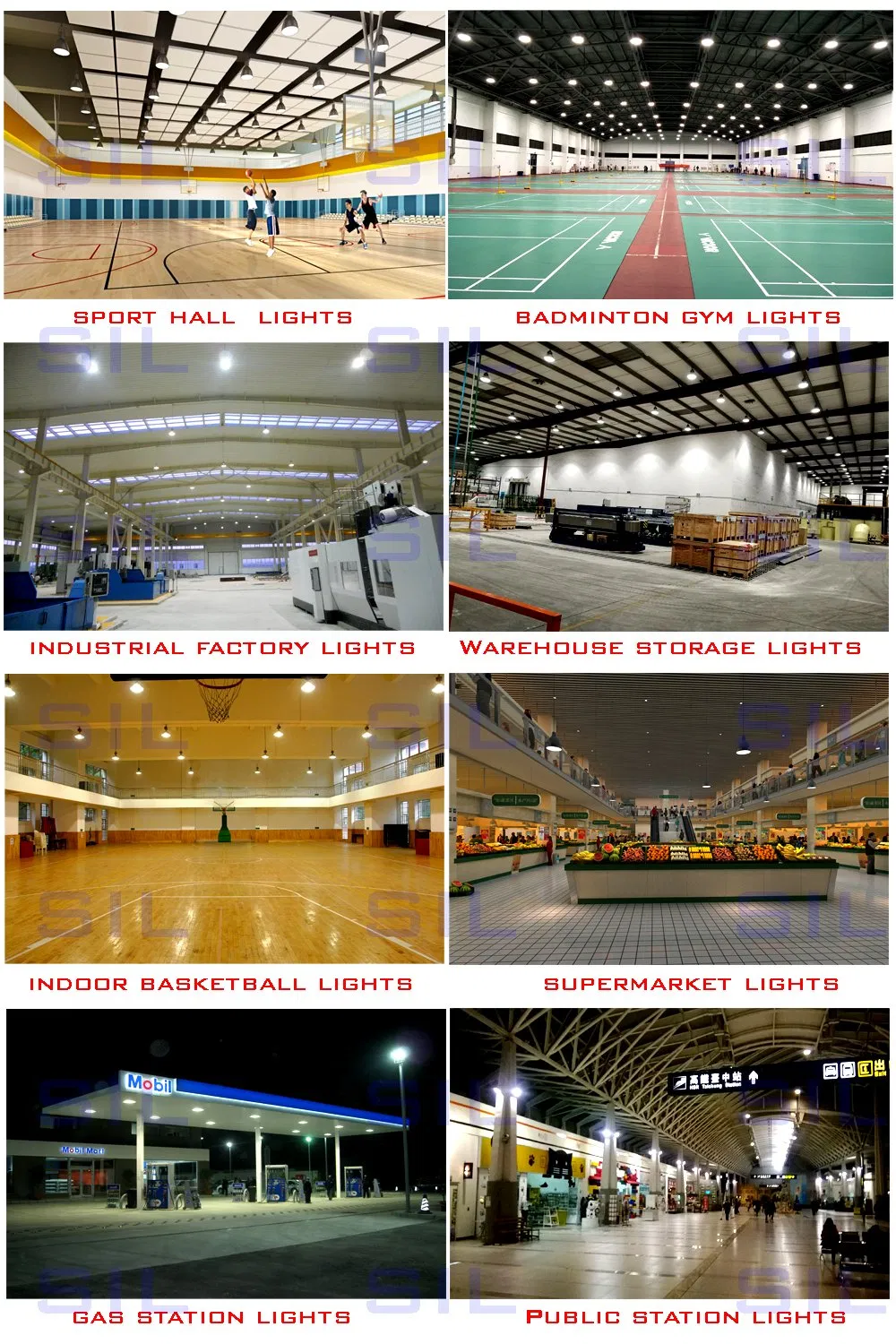

Project application:
150W LED Screw Cap and Aluminum Alloy Heat Dissipation Process LED High Bay Light

Certificates:
150W LED Screw Cap and Aluminum Alloy Heat Dissipation Process LED High Bay Light

About company:

Company Information
SIL Company view Specification of LED Lights:

Shenzhen Southern Industrial Lights Co., Ltd. was established in March 2016. It is an LED lamp manufacturer integrating customization, development, design, production and sales of engineering tooling lamps. The factory is located in the open special economic zone of China-Shenzhen, the main lamps and lanterns Products include: street lights, floodlights/flood lights, garden lights, and line wall washer lights, underground lights, ceiling spotlights, track lights, high bay lights, flat lights and other light sources. The company's lighting products are widely used. The lights are novel in style and complete in specifications. They are widely used in municipal roads, commercial real estate construction, commercial hotels, chain shopping malls, hospital schools, bank stadiums, office real estate, chain brand shops, etc...

The quality of our lighting products is strictly controlled, and the factory has undergone strict aging and shipment inspection procedures. It is based on the ISO9001: 2000 quality management system and strictly implemented to ensure that we provide customers with high-quality products and excellent services. All products sold are in line with CCC, TUV, SAA, CE (EMC, LVD), and ROHS standards. Southern Industry builds its corporate image with the quality policy of "Quality First, Building Brand, Serving Customers, Doing Good Lighting Products", and establishes itself in the lighting market with the management concept of "Lighting with heart, quality with heart, and service with heart". At present, Southern Industrial light's high-quality LED lighting products have been distributed in dozens of countries in Europe, Australia, North America, etc., and have established an excellent reputation and brand image in the national and global high-end non-standard engineering lighting markets.

Relying on the enthusiasm, integrity and dedicated work style of the technical team and sales staff with many years of experience in LED lighting development, Southern Industry strives to provide high-quality products and thoughtful services to mid-to-high-end customers across the country and around the world. Through continuous accumulation and improvement, we will strive to do a good job in the product quality and service of Southern Industrial Lights!

150W LED Screw Cap and Aluminum Alloy Heat Dissipation Process LED High Bay Light

Frequently asked questions:
Q:   What is a general business process?
A: Send inquiry to SIL→(Customer provides engineering information→ Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service

Q: Do you have any certification like BIS, CE RoHS?
A: "Yes" we have certification in CE RoHS and BIS for whole product and SAA cert only for driver component.

Q: What is the warranty?
A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.

Q: What is the payment period?
A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit

Q:   What is the payment term?
A: For sample order, we can accept T/T, PayPal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.

Q:   Can I add my logo on the product label?
A: Yes, but order quantity is requested depending on different lights.

Q:   I don't know which sty how many LED Street Light should I use, can you advise?
A: Yes, we can offer our professional solution for you, IES file is available if you have the design team.

Q:   Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.

Q: What is the MOQ for customizing packing?
A: If you order 3000pcs each type, we will help you do customize color box and logo. If less 3000pcs, we will give you white box or factory normal color box.

Q: Could you offer door to door delivery?
A: Yes, we can quote you with DDP service, please leave us your address.

Q: Sample can be free?
A: Yes, we can offer free samples based on intent orders.

Q:   How do you ship the goods and how long does it take to arrive?
A: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.

Q: What is the voltage range of the products?
A: Our price is based on 165-265v range, we can supply with 85-265v too, please confirm the price with us.

Q: Can i order in SKD?
A: Yes sure, our price is based on complete goods, please tell us your requirement and we can quote accordingly.

Q: How is your delivery time?
A: Some designs we have stock, rest for sample orders or trial order, it takes about 7-10 days, for bulk order, normally our production time is 30-35 days.

Q: Can I see the real pictures and video?
A: Yes sure, we can share photos and videos of the products to you on TM or by mail.

Q:   We don't know how to install, can you help?
A: We offer both online and on-site installation instructions and testing. Please communicate with us in advance; we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.

Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send out new replacement to you immediately for you to solve the problem.

Q:   It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
A: You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage.
