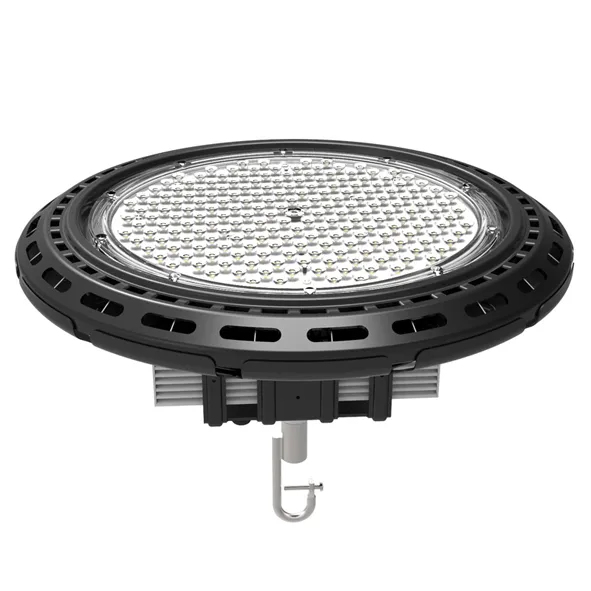

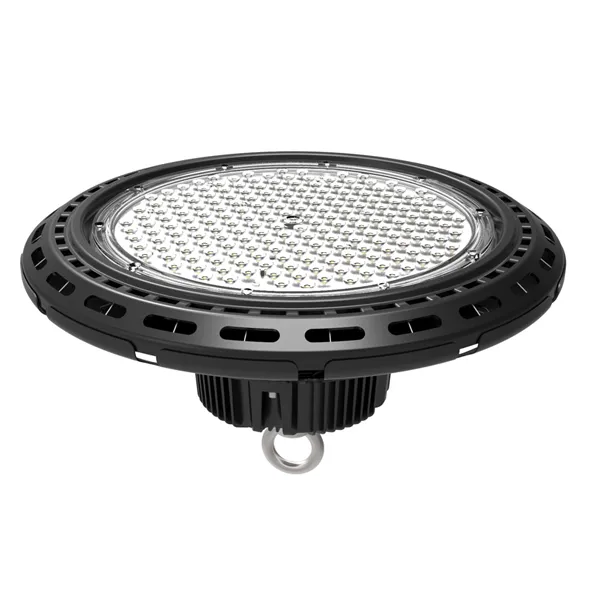

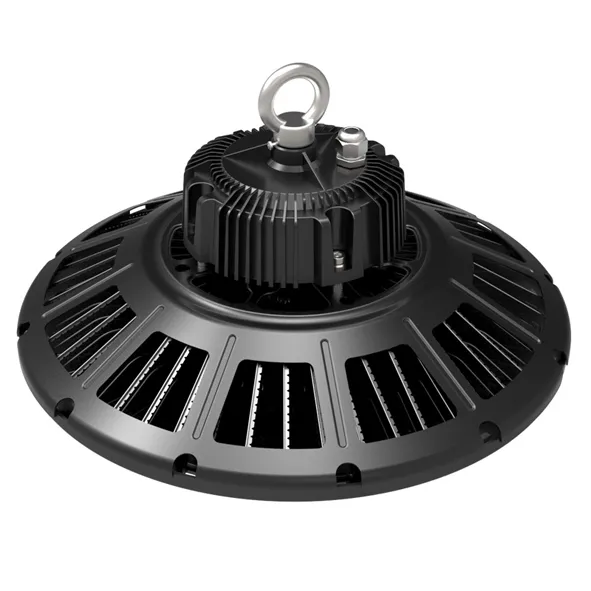

High Power 100W/ 150W /200W Warehouse/Factory Industrial LED High Bay Light
High Power 100W/150W/200W Warehouse/Factory Industrial LED High Bay LightSpecification ParameterModel No.HB15-100WAHB15-150WAHB15-200WAPower100W150W200WLED typeSMD 3030SMD 3030SMD 3030LED Qty192 PCS192 PCS240 PCSConnection32P6S32P6S40P6SLED Volt36V36V36VDriver typeHBG-100-36AHBG-160-36AHBG-240-48AIn......
Send Inquiry
Product Description

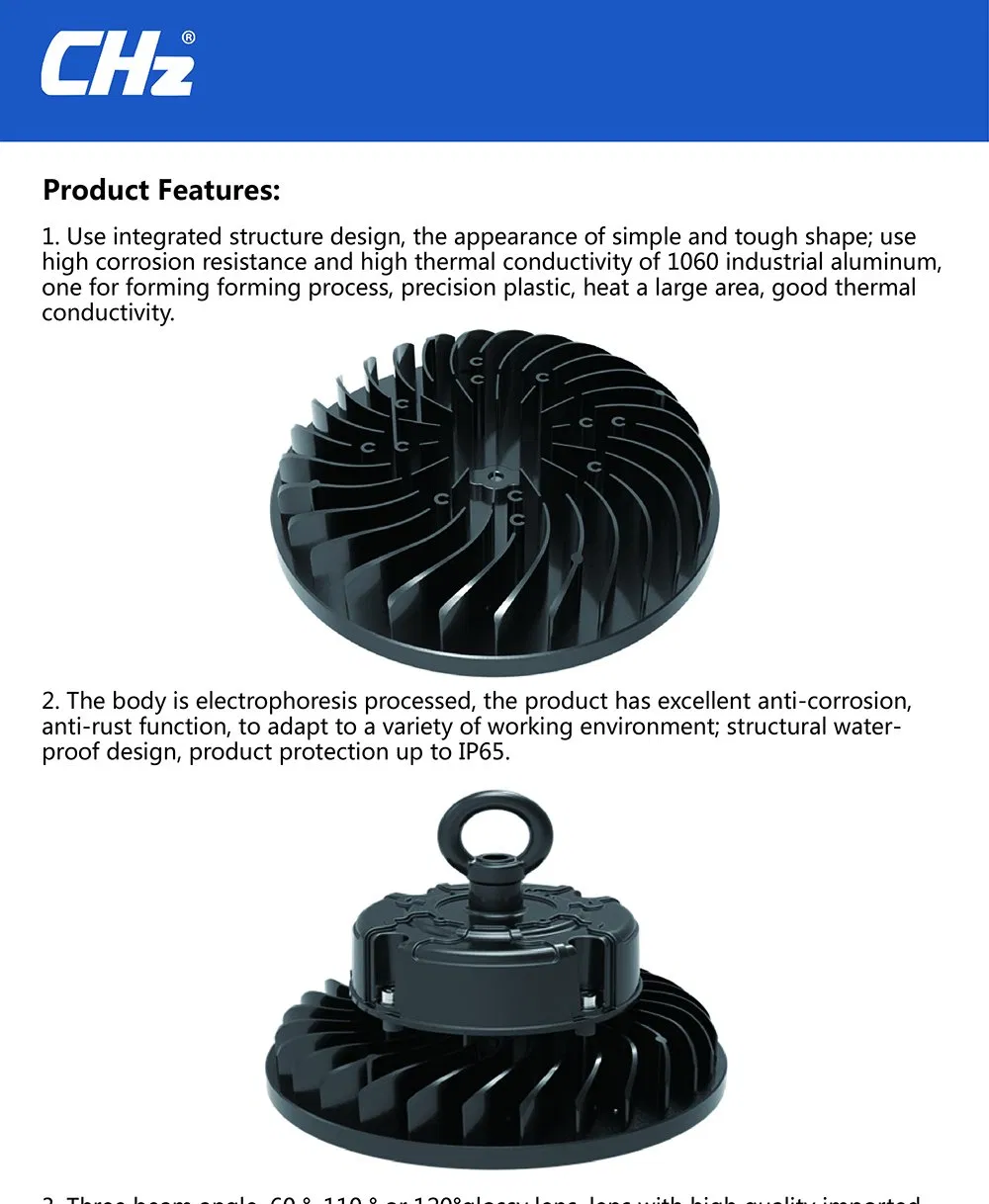

High Power 100W/150W/200W Warehouse/Factory Industrial LED High Bay Light
Specification
| Parameter | |||
| Model No. | HB15-100WA | HB15-150WA | HB15-200WA |
| Power | 100W | 150W | 200W |
| LED type | SMD 3030 | SMD 3030 | SMD 3030 |
| LED Qty | 192 PCS | 192 PCS | 240 PCS |
| Connection | 32P6S | 32P6S | 40P6S |
| LED Volt | 36V | 36V | 36V |
| Driver type | HBG-100-36A | HBG-160-36A | HBG-240-48A |
| Input Volt | 100-277V | 100-277V | 100-277V |
| Dimming | 0-10V, PMW, Timer, Dali | ||
| Power Factor | >0.95 | >0.95 | >0.95 |
| Lumen | >140LM/W | >130LM/W | >130LM/W |
| Color Temp | 3000-6500K | 3000-6500K | 3000-6500K |
| Coler Render | >70 | >70 | >70 |

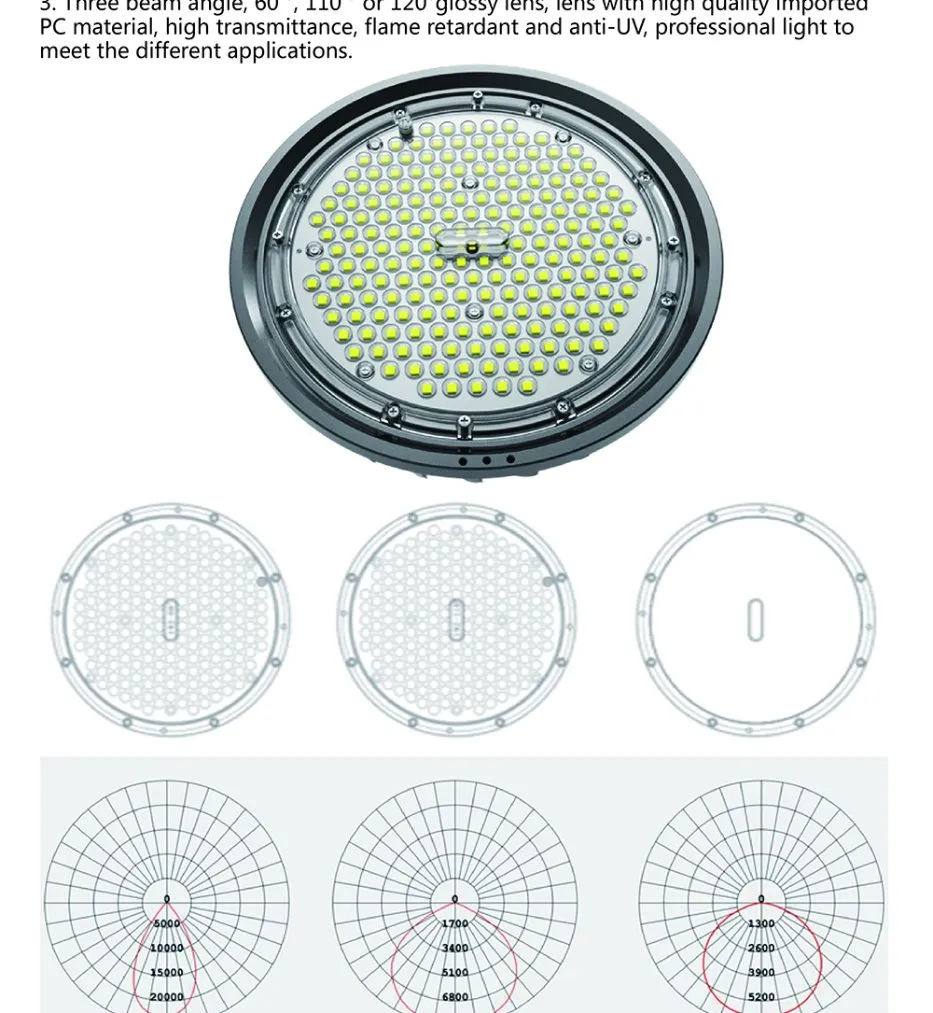

| Beam Angle | 60°/110° | ||
| Product size | Φ240x125mm | Φ240x125mm | Φ280x135mm |
| Installation | Hook / rings/ square bracket, optional | ||
| Light material | Die-case AL+ PC lens | ||
| Protection degree | IP54 | ||
| Work Temp | -30ºC~+50ºC | ||
| Work Humidity | 10%~90% | ||
| Life/Warranty | 50,000hrs / 5 Years | ||
