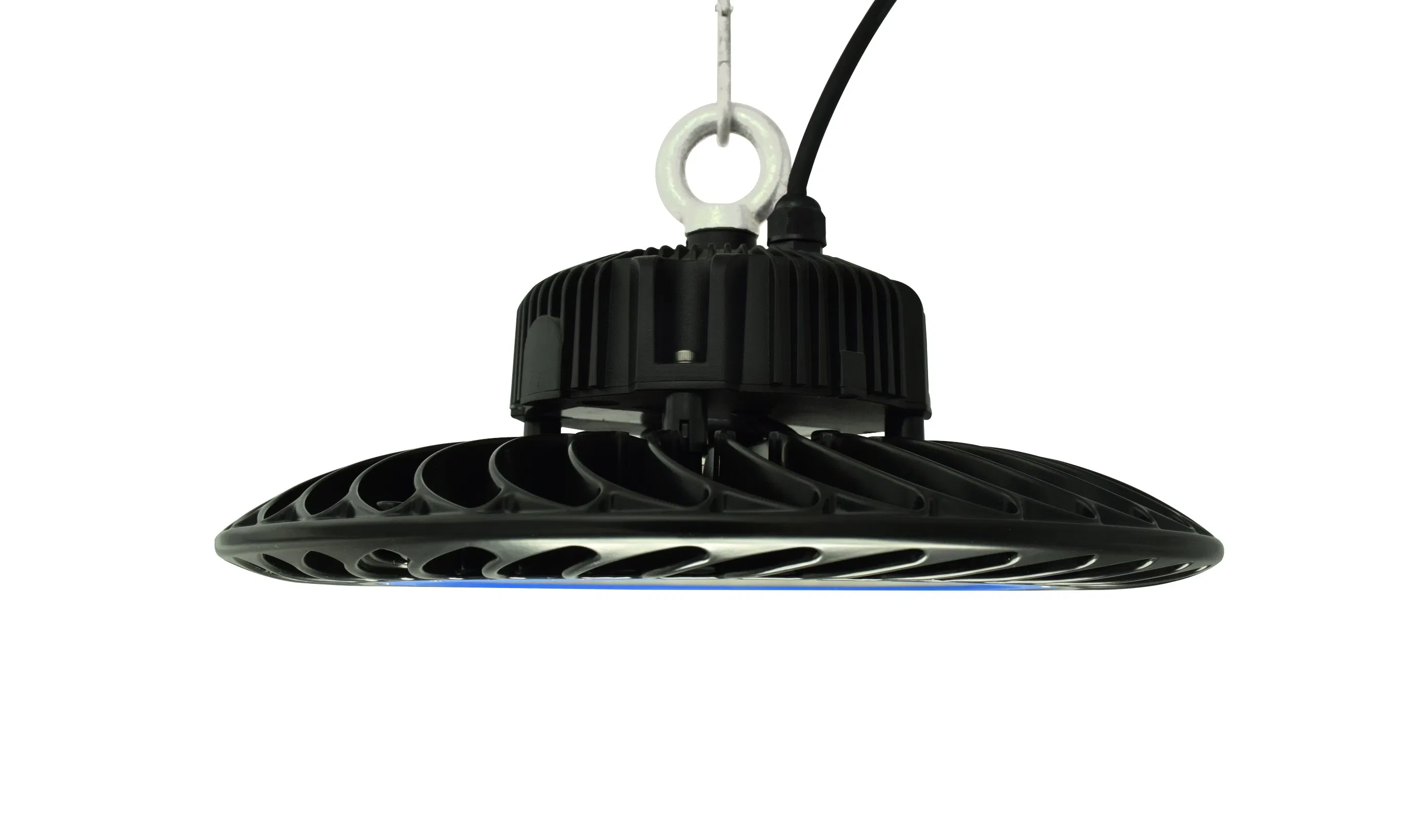

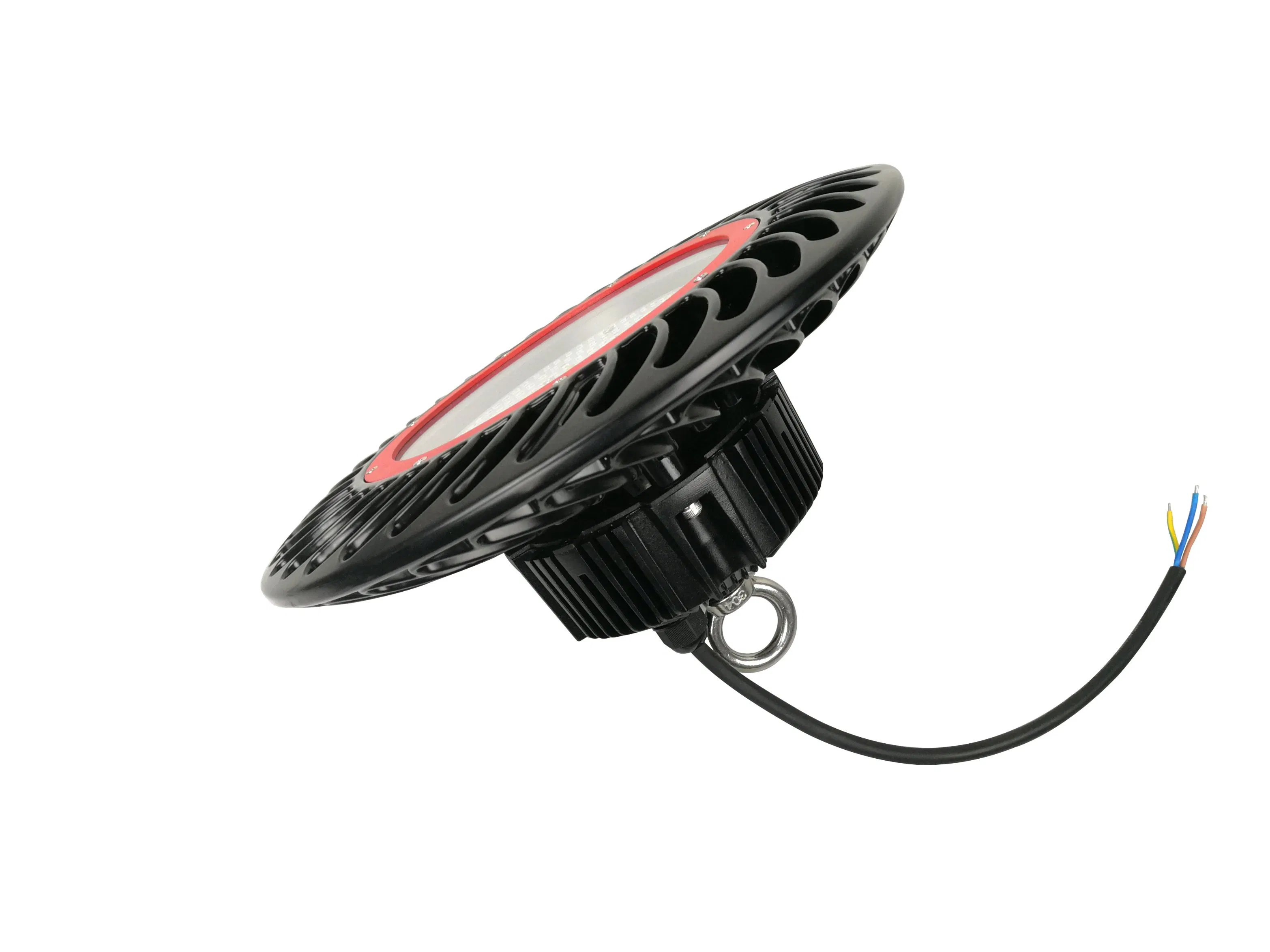

LED High Bay Industrial 100W/150W/200W LED High Bay LED Light Outdoor
Technical SpecificationsSize: 280*H170, 340*H175, 400*H175MMLED type: Lumileds SMD 3030, LM80 TM21 certified, Up to150lm/WDriver brand: Meanwell HBG series Power: 100W, 150W, 200W, 240W PF>0.95CRI> 80Material: Die-cast aluminum, PC lens and stainless screws Working voltage: 100-277VLuminous Ef......
Send Inquiry
Product Description
Technical Specifications
Size: Ф280*H170, Ф340*H175, Ф400*H175MM
LED type: Lumileds SMD 3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell HBG series
Power: 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens and stainless screws
Working voltage: 100-277V
Luminous Efficiency: 150LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: Black/White
IP Rating: IP65
Life-span: 50, 000 hours
Product Description
PF>0.95, CRI >80Ra, THD<15%
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH
Lumileds 3030 SMD LED, 150lm/w
Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Die-cast aluminum, Optical lens, stainless screws
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable.
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost.
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly.
All stainless screws prevent bad situation.
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances Certification: UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS.
Warranty: 5 years
Product Advantages:
UL Meanwell driver
Lumileds SMD 3030, 150lm/w
Non-dimmable and dimmable are the same price
Chimney structure heat dissipation, air convection effect, good thermal management system, improving heat dissipation performance to long life time.
Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

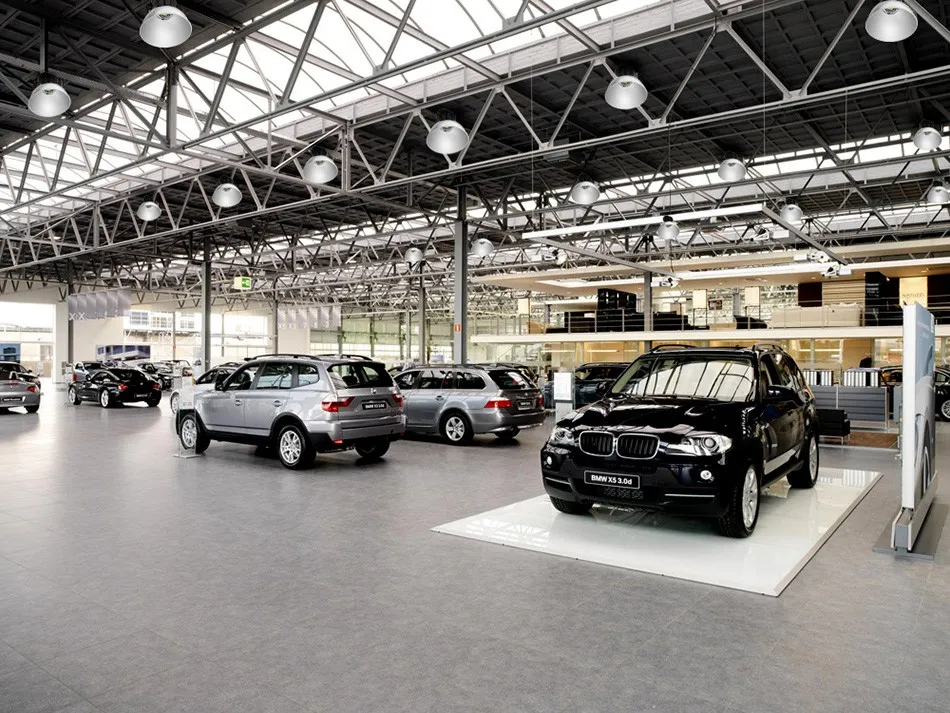

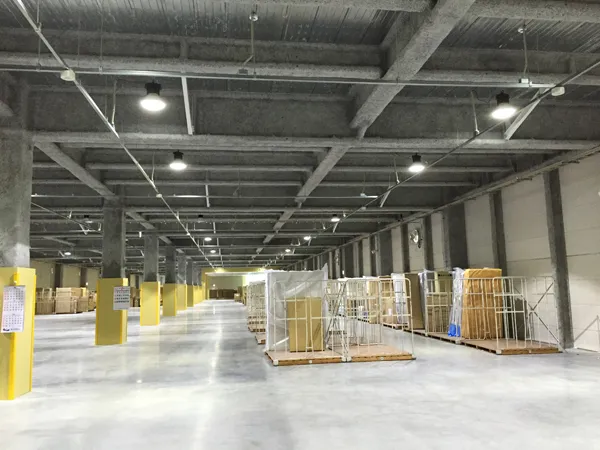

Applications
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin
Please feel free to send us your inquiry, We are at your service any time!
Size: Ф280*H170, Ф340*H175, Ф400*H175MM
LED type: Lumileds SMD 3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell HBG series
Power: 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens and stainless screws
Working voltage: 100-277V
Luminous Efficiency: 150LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: Black/White
IP Rating: IP65
Life-span: 50, 000 hours
| Power | 100W | 150W | 200W | 240W |
| Power consumption | 100W±5W | 150W±5W | 200W±5W | 240W±5W |
| Input Voltage | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| Power Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Output Voltage | DC28.8-48V | DC28.8-48V | DC28.8-48V | DC28.8-48V |
| Output Current | 2A(Constant Currrent) | 3.3A(Constant Currrent) | 4.8A(Constant Currrent) | 5.0A(Constant Currrent) |
| Luminous Flux | 13500LM(CCT=5000K) | 22500LM(CCT=5000K) | 27000LM(CCT=5000K) | 27000LM(CCT=5000K) |
| Fixture Material | 1060 | 1060 | 1060 | 1060 |
| LED Type | Lumileds SMD 3030 | |||
| PowerSupply | MeanWell | |||
| System Efficacy | 150LM/W 190LM/W (CCT=5000K) | |||
| CCT | 4000K, 5000K, 5700K, 6000K, 6500K | |||
| Beam Angle | 60 /90/120 | |||
| CRI | >80Ra | |||
| System Efficiency | >90% | |||
| LED Junction Temperature | <75ºC(Ta=30ºC) | |||
| Storage Temperature | (-40~+70ºC) | |||
| Operating Temperature | (-30~+50ºC) | |||
| Working Environment | 15-90%RH | |||
| Power Efficiency | >93% | |||
| Power Factor | >0.93 | |||
| Total Harmonic Distortion | <15% | |||
| Luminaire Net Weight | 3.2kg | 4.2kg | 5.5kg | 6.5kg |
| Package Size | 350*350*200mm | 400*400*215mm | 460*460*230mm | 460*460*230mm |
| Certificates | UL CU L DLC TUV-GS CB SAA RCM FCC CE RoHS | |||
| Life span | >50000Hrs(Ta=30ºC @L70) | |||
| Ingress Protection | IP65 | |||
| Quality Warranty | 5years | |||
| Installation | Lifting, Tube, Wall Installation | |||
Product Description
PF>0.95, CRI >80Ra, THD<15%
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH
Lumileds 3030 SMD LED, 150lm/w
Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Die-cast aluminum, Optical lens, stainless screws
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable.
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost.
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly.
All stainless screws prevent bad situation.
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances Certification: UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS.
Warranty: 5 years
Product Advantages:
UL Meanwell driver
Lumileds SMD 3030, 150lm/w
Non-dimmable and dimmable are the same price
Chimney structure heat dissipation, air convection effect, good thermal management system, improving heat dissipation performance to long life time.
Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount
Applications
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin
Please feel free to send us your inquiry, We are at your service any time!
