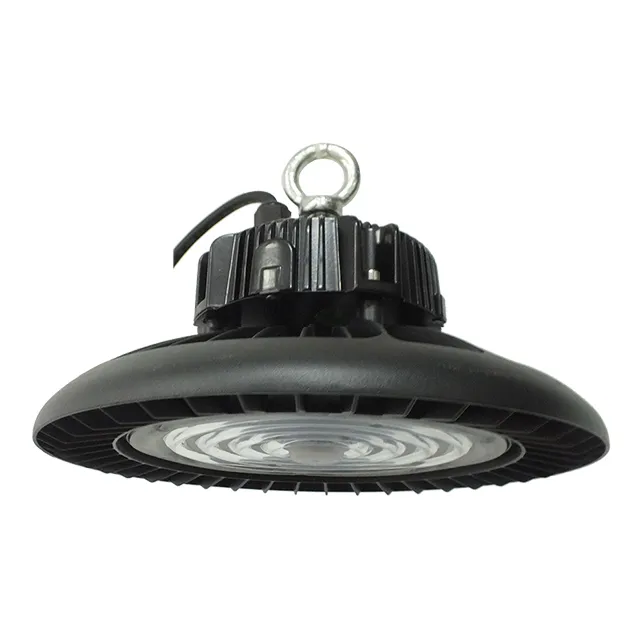

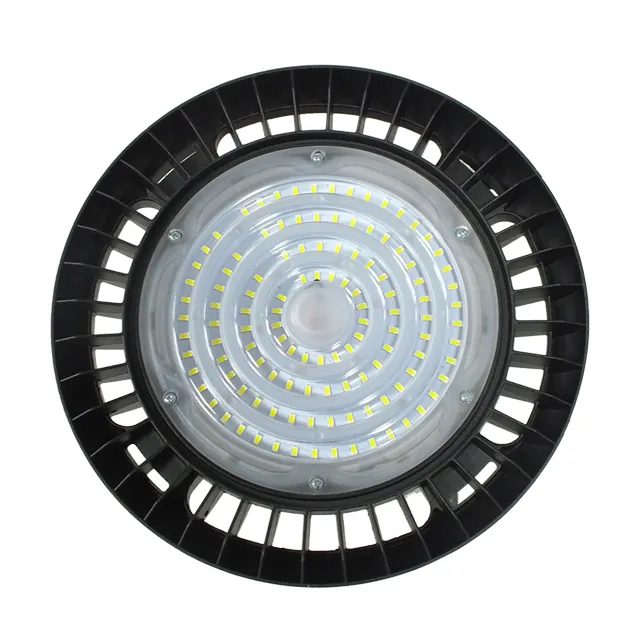

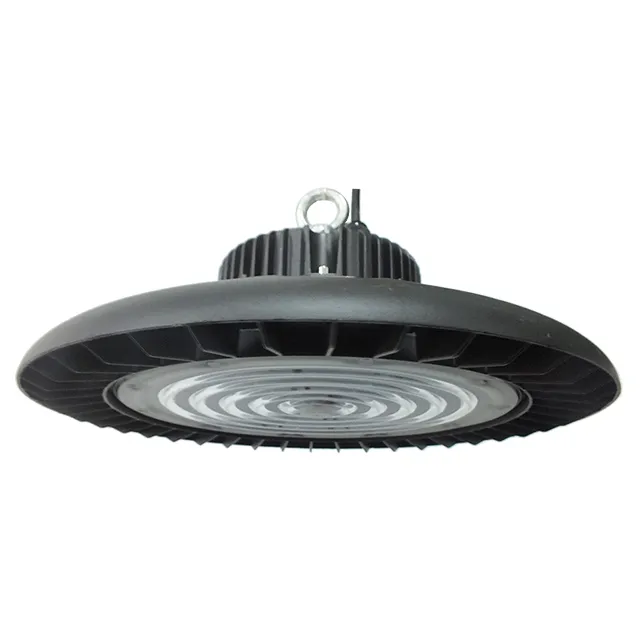

Meanwell Driver Industry Lights 150W LED Highbay Fixture

Product Description

Meanwell Driver Industry Lights 150W LED Highbay Fixture

Model	HB15-100WC	HB15-150WC	HB15-150WC
Power	100W	150W	200W
LED type	SMD3030	SMD3030	SMD3030
LED`s	119PCS	170PCS	221PCS
Connection	7P17S	10P17S	13P17S
Chips Volt	102V	102V	102V
Input Volt	100-277V	100-277V	100-277V
Control method	Conventional/0-10V/DALI
PF	>0.95	>0.95	>0.95
Lumen(Lm/W)	>130	>130	>130
CCT	3000K~6500K	3000K~6500K	3000K~6500K
RA	>80	>80	>80
Beam angle	60°/90°/120°	60°/90°/120°	60°/90°/120°
IP	IP66	IP66	IP66
Product size(mm)	Φ275x170	Φ320x170	Φ380x170
Light material	Die-cast aluminum body + PC lens
Protection level	IP54/4KV	IP54/4KV	IP54/4KV
Work temp	-40ºC~+50ºC	-40ºC~+50ºC	-40ºC~+50ºC
Work humidity	10%~90%	10%~90%	10%~90%
Life/Warranty	50,000hrs / 5Years	50,000hrs / 5Years	50,000hrs / 5Years

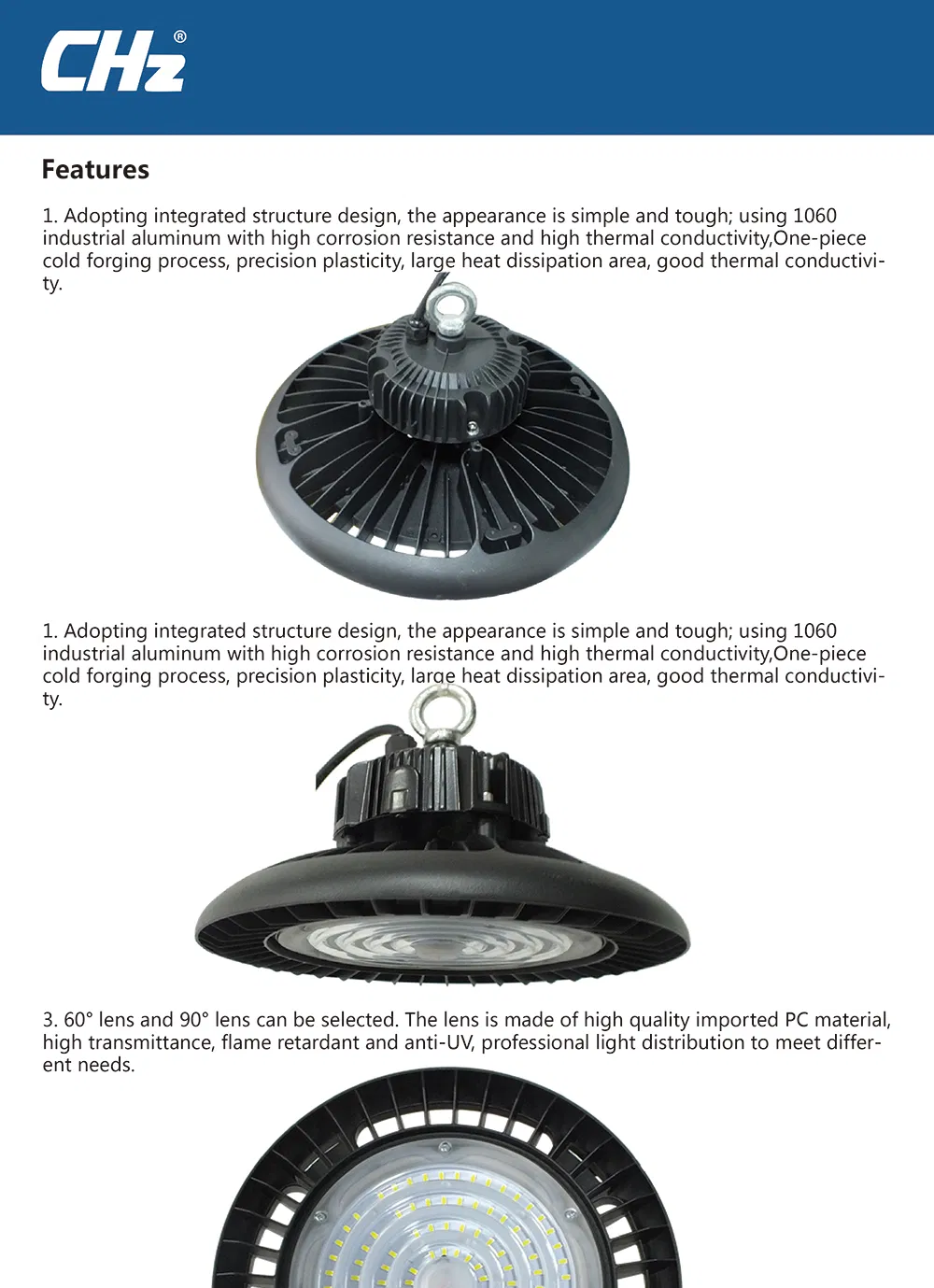

1. Adopting integrated structure design, the appearance is simple and tough; using 1060 industrial aluminum
with high corrosion resistance and high thermal conductivity,One-piece cold forging process, precision plasticity,
large heat dissipation area, good thermal conductivity.
2. The whole lamp electrophoresis process, the product has excellent anti-corrosion, anti-rust function, adapt to
a variety of working environments; structural waterproof design, product protection level up to IP54.
3. 60° lens and 90° lens can be selected. The lens is made of high quality imported PC material, high transmittance,
flame retardant and anti-UV, professional light distribution to meet different needs.
