Home > Products > LED High Bay Light > New Products High Quality Aluminium Waterproof Warehouse SMD 100W 150W 200W LED Highbay Light

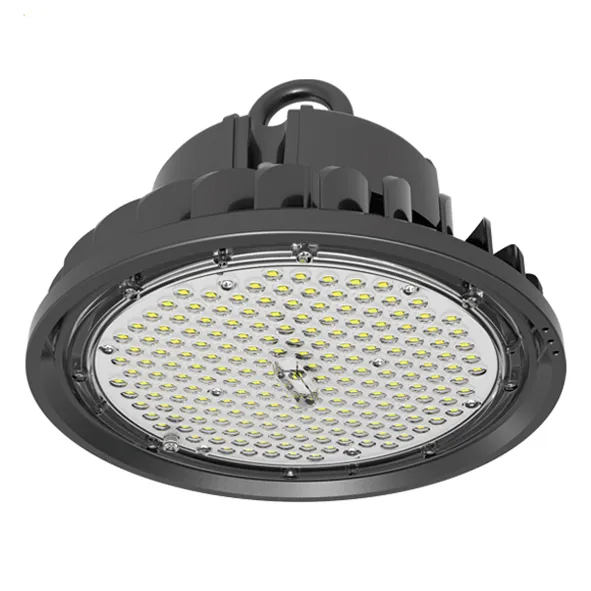

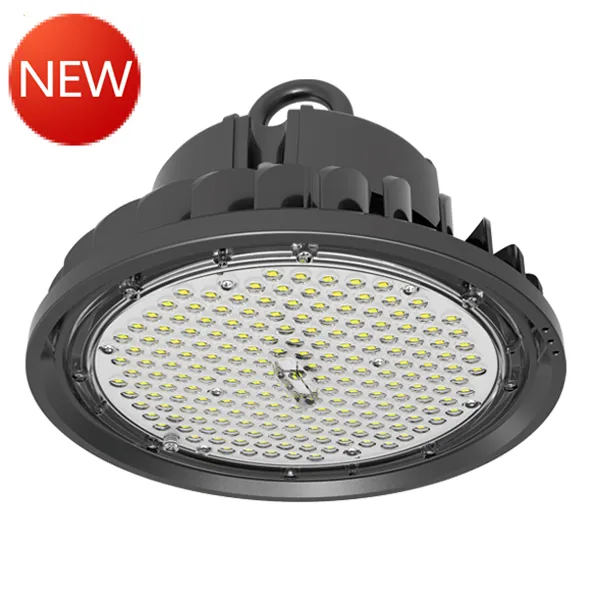

New Products High Quality Aluminium Waterproof Warehouse SMD 100W 150W 200W LED Highbay Light
UFO LED high bay lighting lumen efficiency 140 lu/w 100W-200WSpecification ParameterModel No.HB15-100WAHB15-150WAHB15-200WAPower100W150W200WLED typeSMD 3030SMD 3030SMD 3030LED Qty192 PCS192 PCS240 PCSConnection32P6S32P6S40P6SLED Volt36V36V36VDriver typeHBG-100-36AHBG-160-36AHBG-240-48AInput Volt100-......
Send Inquiry
Product Description

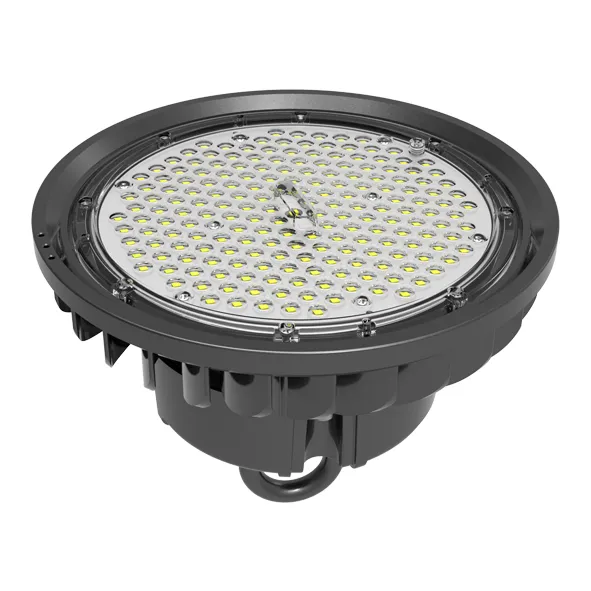

UFO LED high bay lighting lumen efficiency 140 lu/w 100W-200W
Specification
| Parameter | |||
| Model No. | HB15-100WA | HB15-150WA | HB15-200WA |
| Power | 100W | 150W | 200W |
| LED type | SMD 3030 | SMD 3030 | SMD 3030 |
| LED Qty | 192 PCS | 192 PCS | 240 PCS |
| Connection | 32P6S | 32P6S | 40P6S |
| LED Volt | 36V | 36V | 36V |
| Driver type | HBG-100-36A | HBG-160-36A | HBG-240-48A |
| Input Volt | 100-277V | 100-277V | 100-277V |
| Dimming | 0-10V, PMW, Timer, Dali | ||
| Power Factor | >0.95 | >0.95 | >0.95 |
| Lumen | >140LM/W | >130LM/W | >130LM/W |
| Color Temp | 3000-6500K | 3000-6500K | 3000-6500K |
| Coler Render | >70 | >70 | >70 |

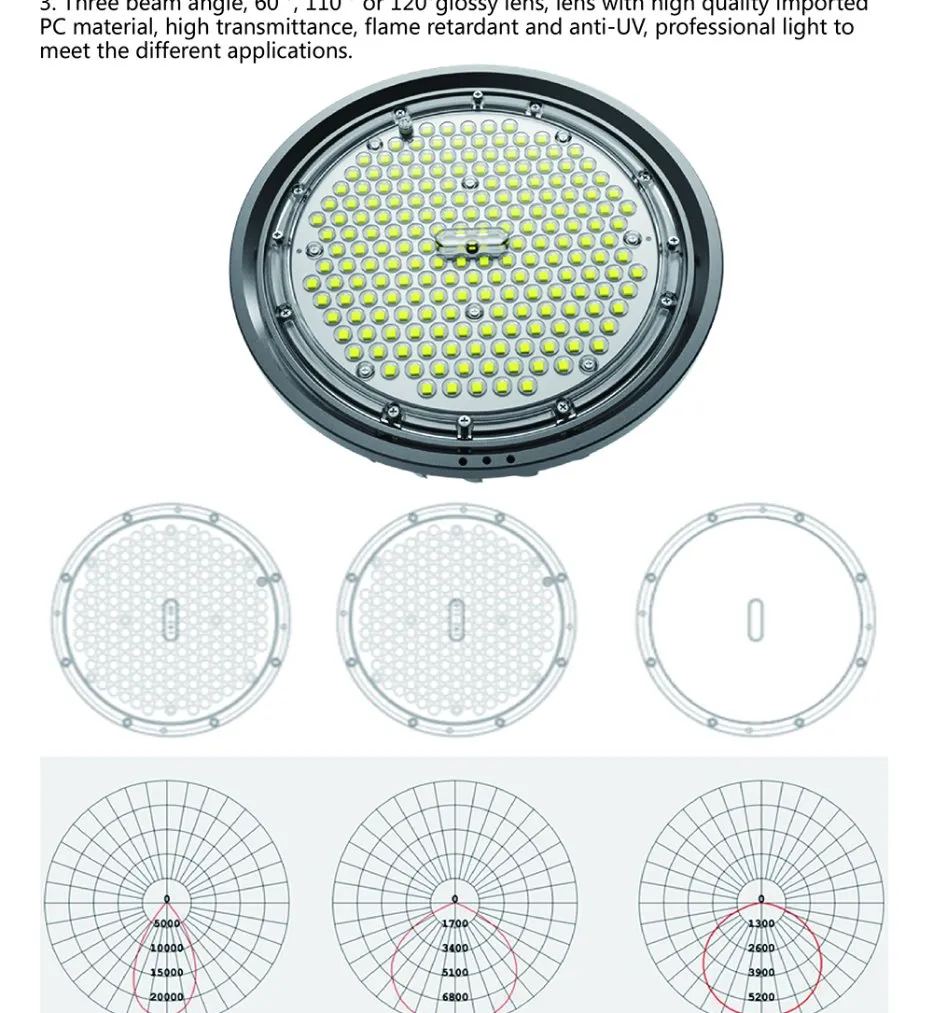

| Beam Angle | 60°/110° | ||

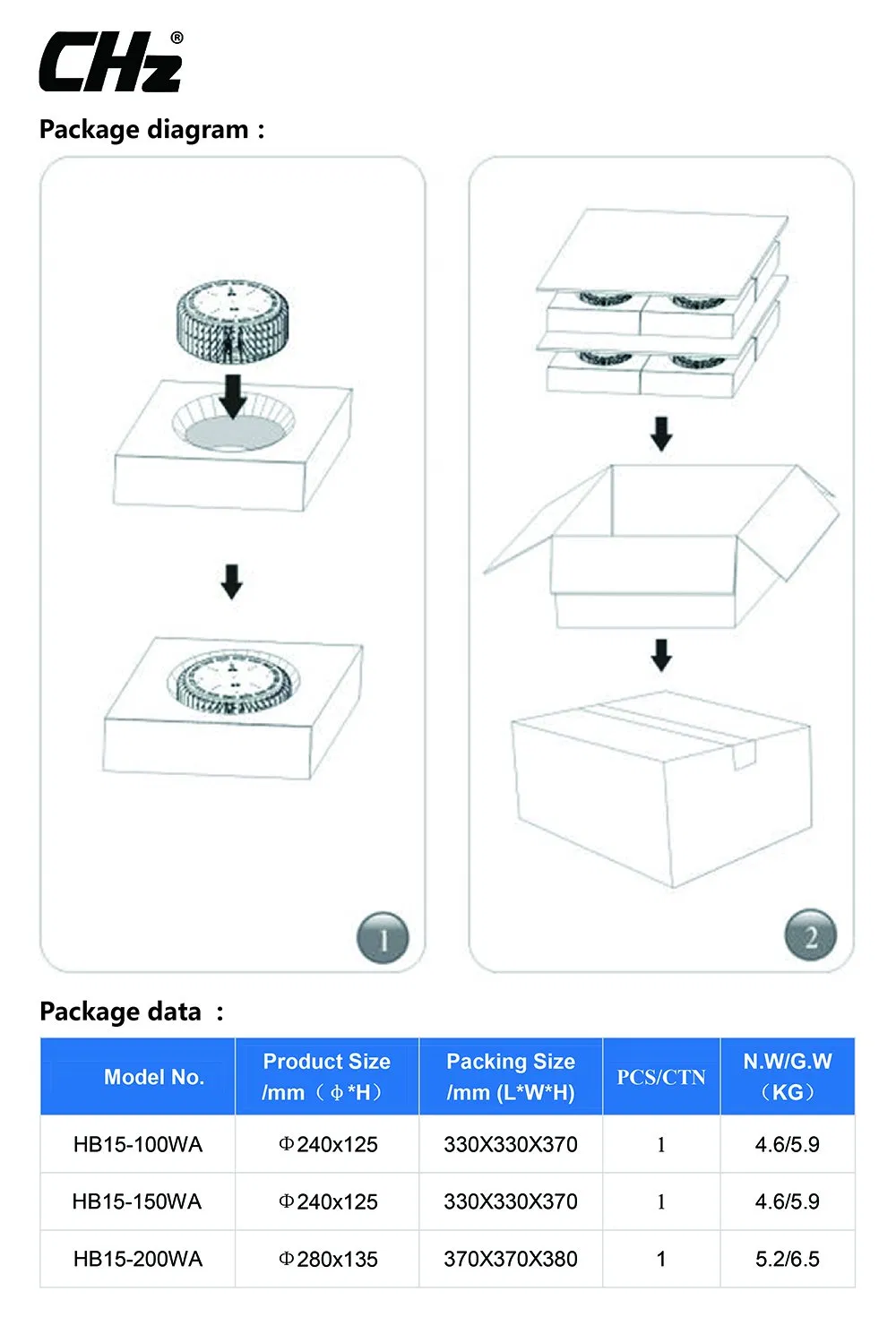

| Product size | Φ240x125mm | Φ240x125mm | Φ280x135mm |
| Installation | Hook / rings/ square bracket, optional | ||

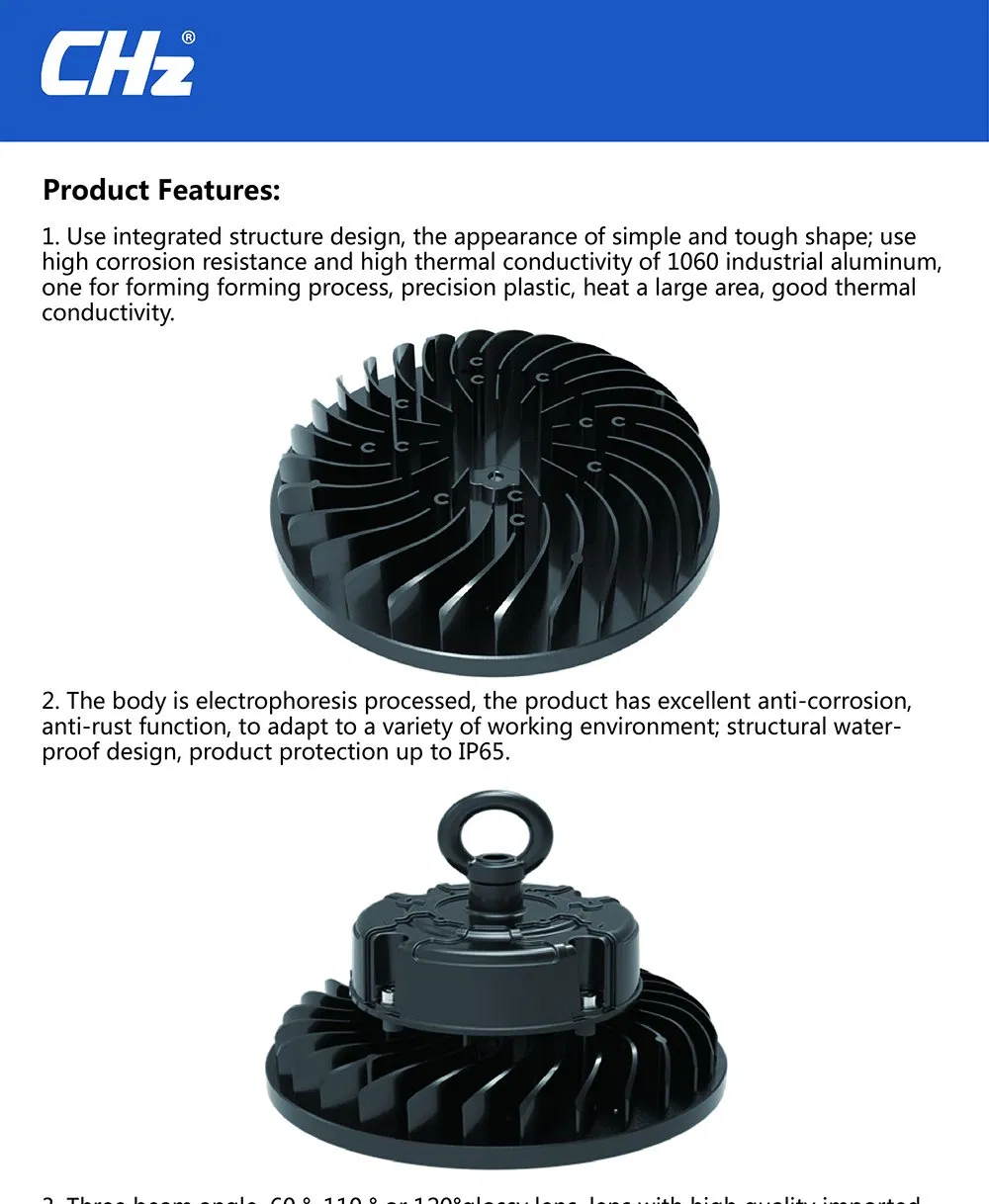

| Light material | Die-case AL+ PC lens | ||
| Protection degree | IP54 | ||
| Work Temp | -30ºC~+50ºC | ||
| Work Humidity | 10%~90% | ||
| Life/Warranty | 50,000hrs / 5 Years | ||
