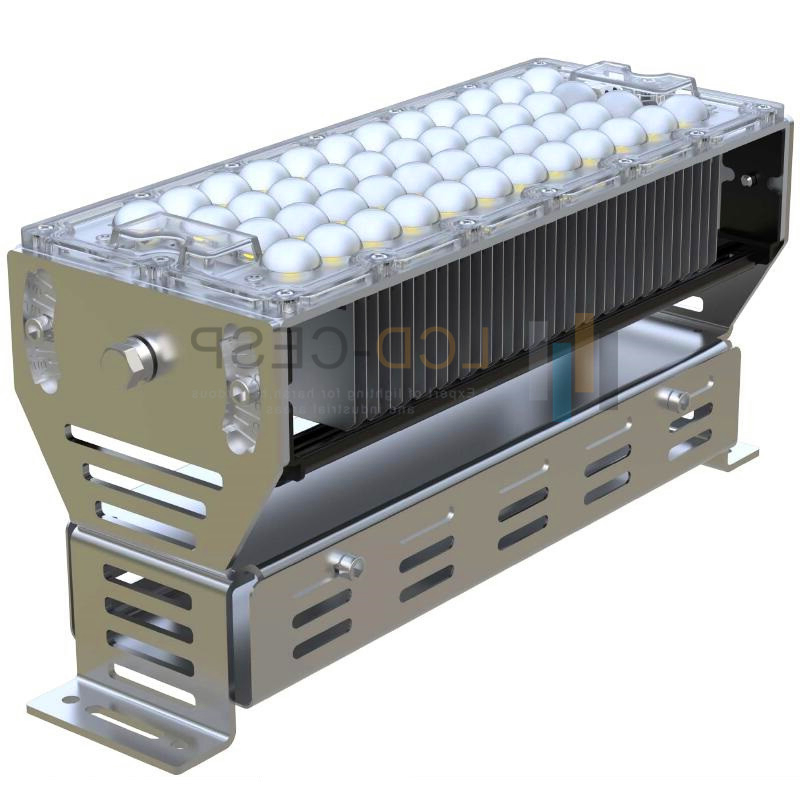

Optic Beam Angle Lens Forward Throw 40deg Narrow 90deg Wide 120W LED Lighting 3000K LED Osram LED Lamp Cattle Barn LED Industrial Light Lumen Efficiency 150lm/W

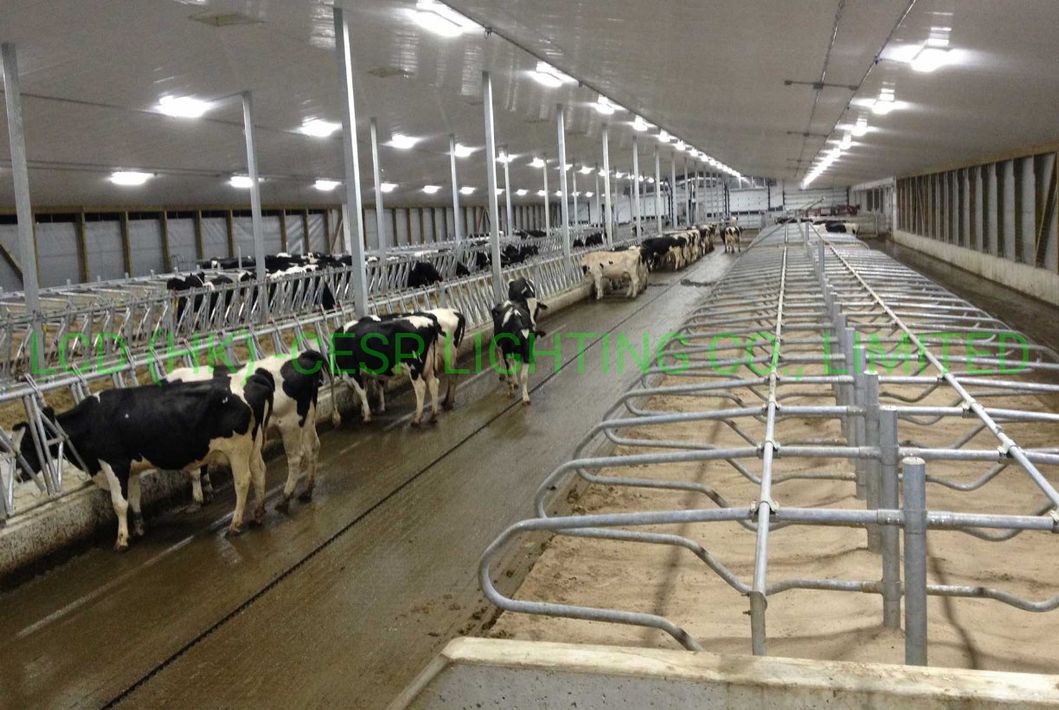

Barn with a width of approx. 35-75 m illuminated by a row of LCD-LYEGM-K245 lampsCattle barns underwent a great deal of modernization over the last few years both in terms of design and equipment.However, there is one area that has remained largely unaffected: lighting technology.The new LED-LCD-LYE......
Send Inquiry
Product Description

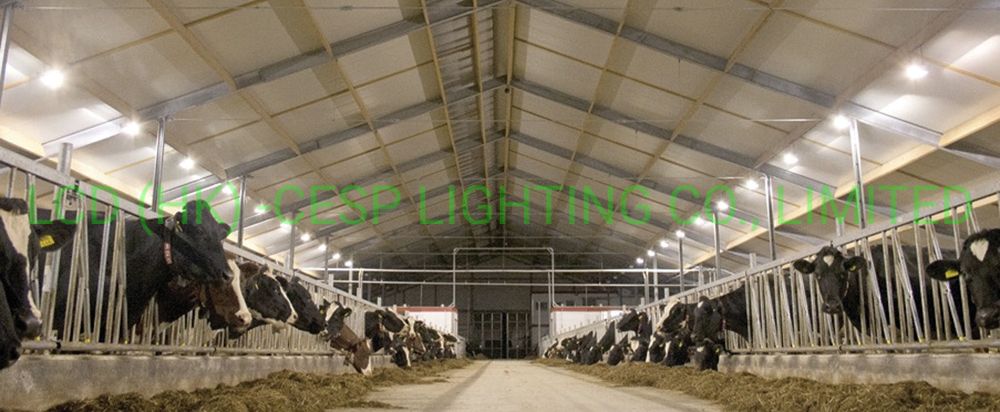

Barn with a width of approx. 35-75 m illuminated by a row of LCD-LYEGM-K245 lamps
Cattle barns underwent a great deal of modernization over the last few years both in terms of design and equipment.However, there is one area that has remained largely unaffected: lighting technology.The new LED-LCD-LYEGM-K245-LAMP represents a major leap forward as far as providing the best possible lighting conditions!
It is now sufficient to install one row of lamps in barns with a width of up to 35-75 m!

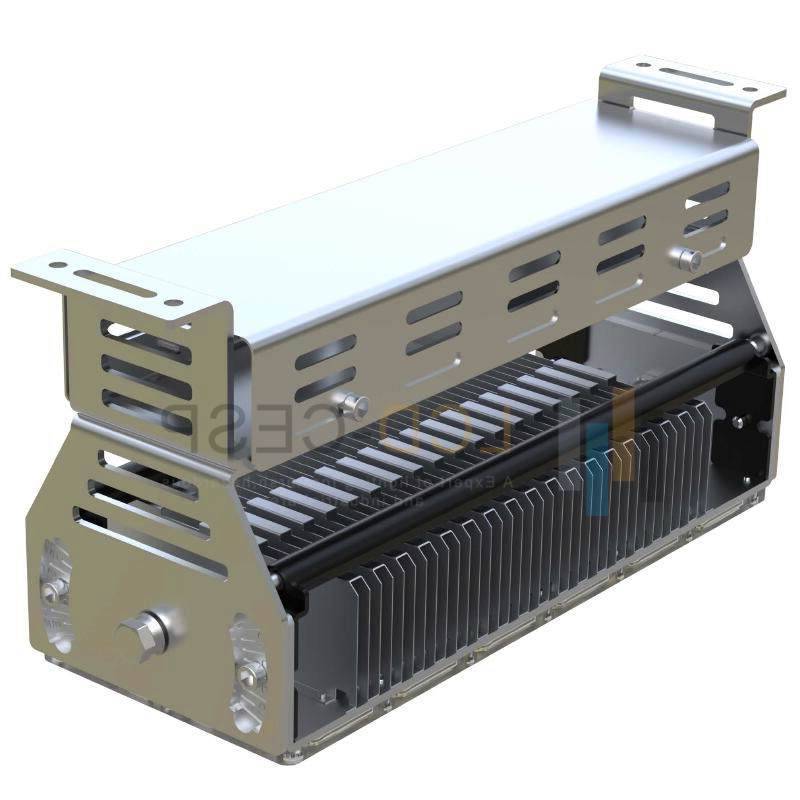

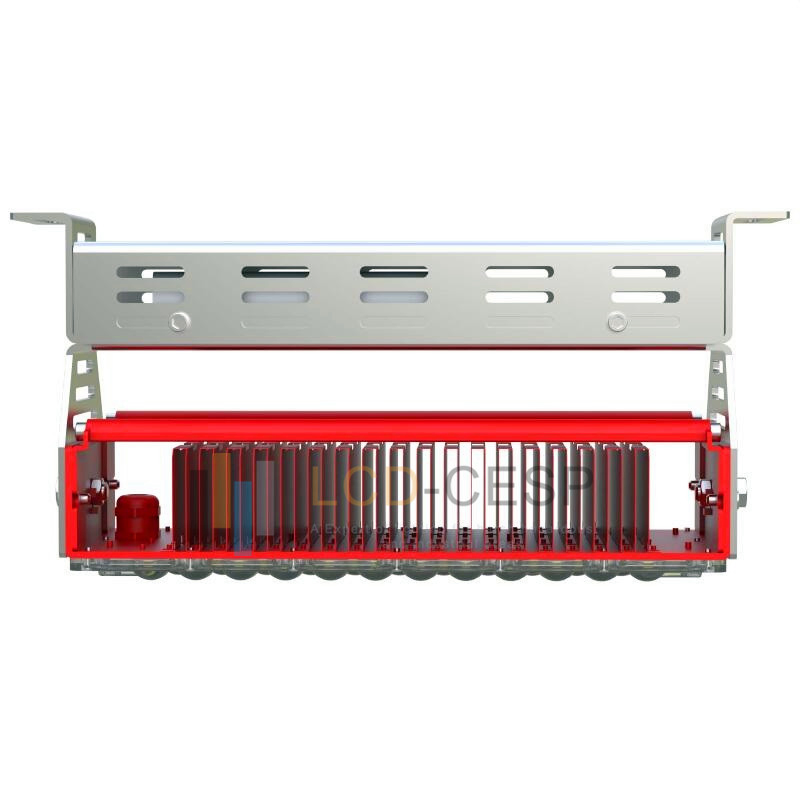

The flexible settings of the LED-LCD-LYEGM-K245-LAMP make it possible to light the illuminated area much more evenly than with conventional lamps.What is more, LED-LCD-LYEGM-K245-LAMPs can also be dimmed down.When used in night mode, approx. 70% of the lamps can be switched off by means of the DALI-LED-Control-system.The remaining 30% of the lamps will be dimmed down to 20%, creating "nighttime" illumination.
Other benefits:
• Savings in energy, maintenance costs, etc. of up to
approx. 80%.
• Service Life at least 15 years, 100.000 operating hours.
• LED light does not attract flies.
• LED lamps are exceptionally robust!
Properties:
• Designed especially for cattle barns
• Color temperature 3000K 4000K 6500K, wide spectrum
• IP67 water-resistant and moisture-proof
• Seven-year warranty*

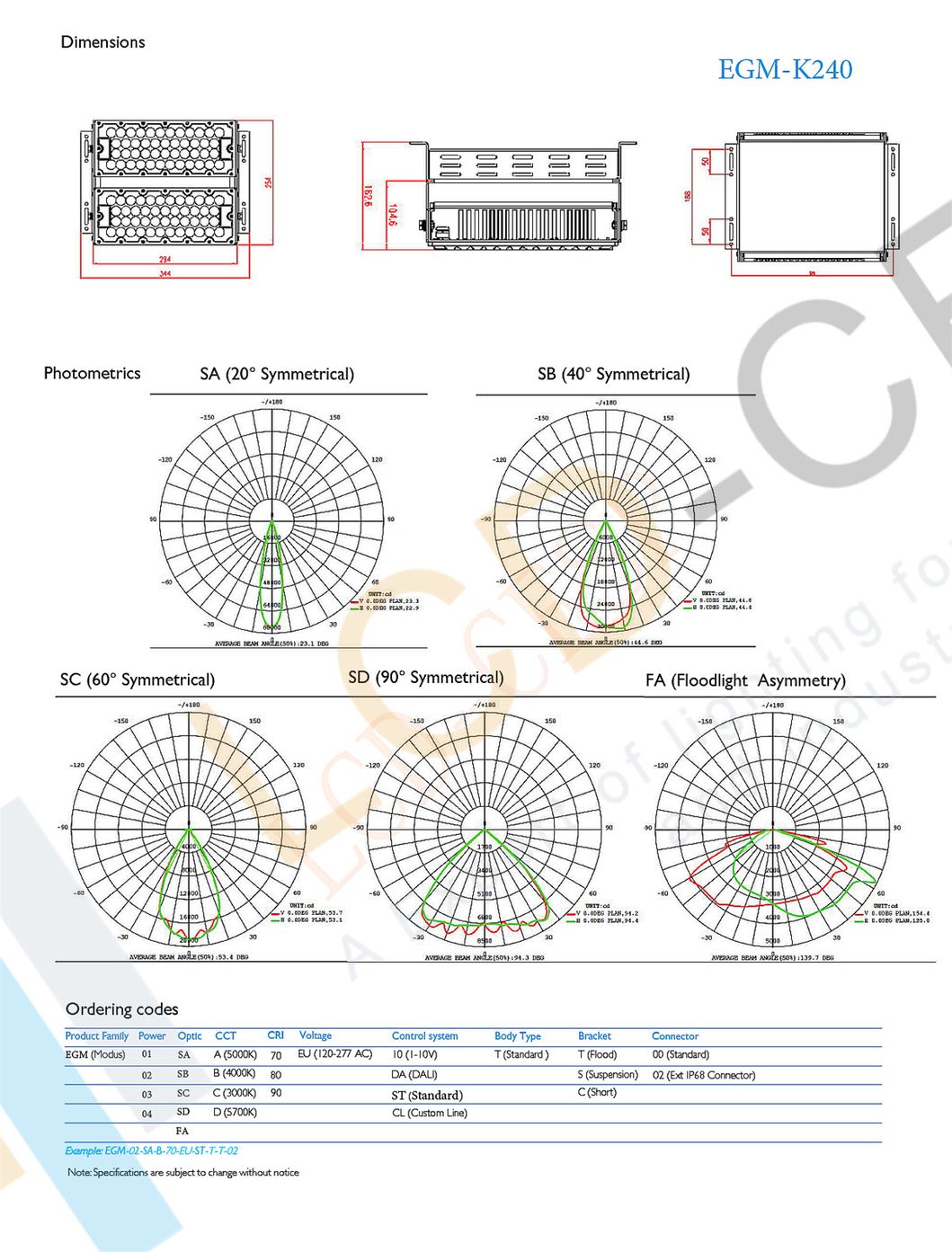

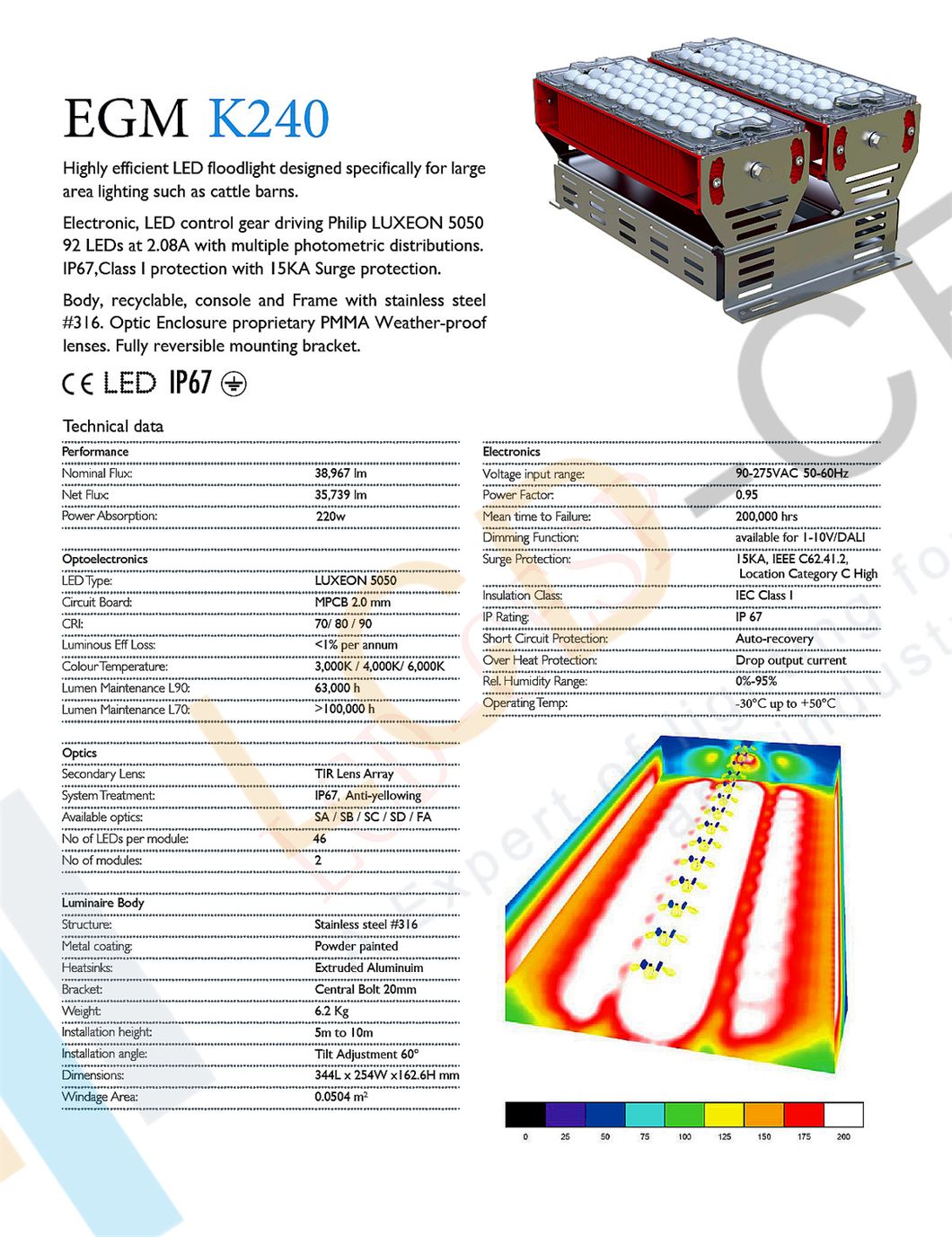

Technical Specifications:
Light output:
Color temperature ...................................... 3000K 4000K 6500K (full spectrum)
Color rendering index ................................ Ra > 75
Chip efficiency ........................................... >150-200 lumen / watts
System efficiency ....................................... >130-160 lumen / watts
Lumen continuity ........................................ >80%at 100.000 hrs
Light outlet ................................................. Lenses / adjustable
Dairy barn lighting intended to enhance performance requires that the barn be lit evenly with 200-350 lux.Lactating cows need 16 hours of light and 8 hours of darkness. Dry cows, on the other hand, need 8 hours of light and 16 hours of darkness. The economic efficiency of this investment is due to not only the higher yield produced by the cows but also the improved health and fertility of the animals.
Other possible applications of the LED-LCD-LYEGM-K123-LAMP for indoor and outdoor use:

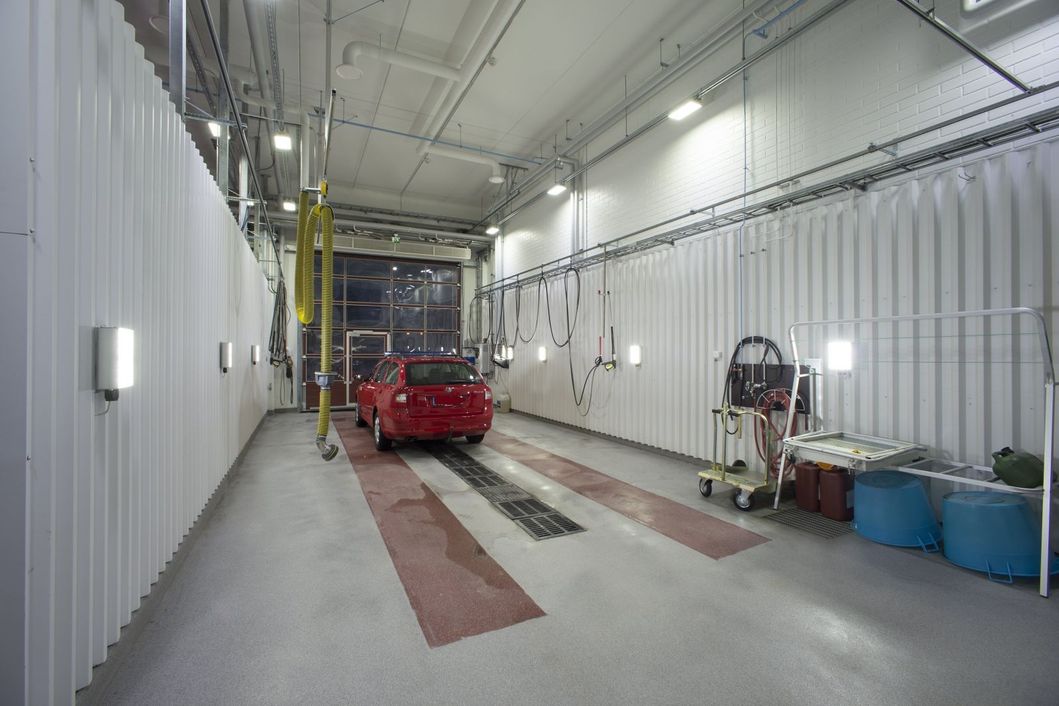

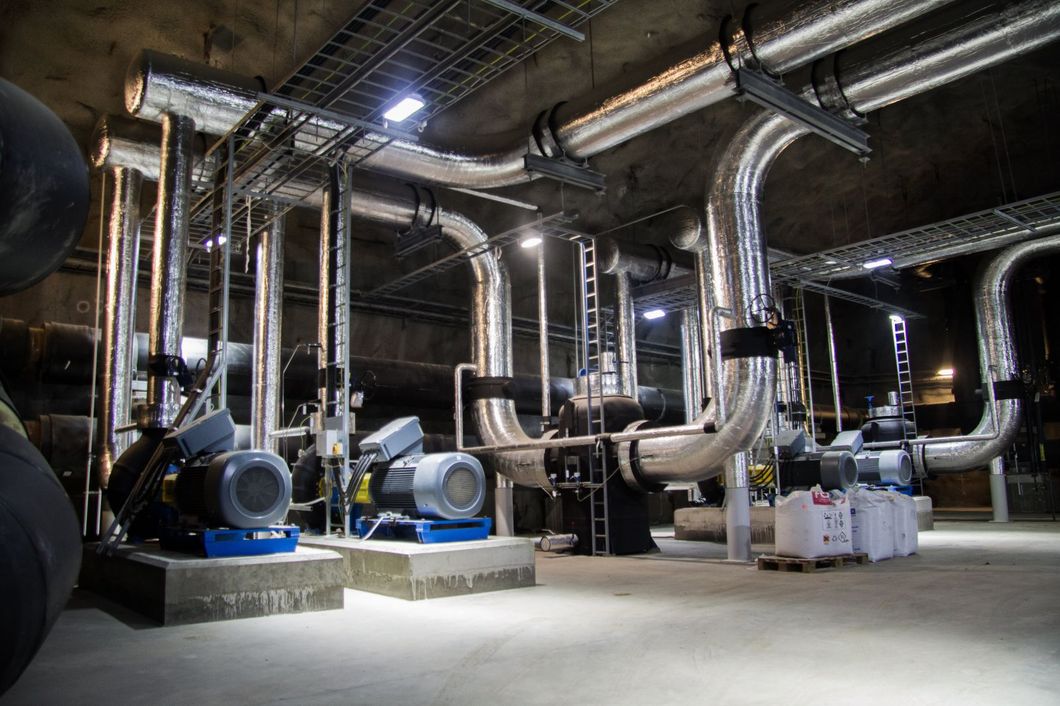

Industrial enterprises, manufacturing shops, food plants, cold storage facilities,warehouses, parking garages/lots, traffic lights,agriculture, cattle barns, workshops, grain stores, etc.
- The benefits -
LEDs help conserve energy! .....A 200 Watt LED light flood generates the same output as a 2000 Watt halogen lamp
LED lamps last for a long time!....Offering a burning life of approx. 50,000 hrs, they will last for 20-25 years when used 6 hours a day. Their capacity will then still be approx. 70% of their initial brightness.
LED lamps are robust!.....No other lamps are as resistant to vibrations, blows and percussions as LED lights
LEDs without UV and infrared radiation....The light spectrum of the LEDs is within the "visible range" and free of UV or infrared radiation. This prevents the plastic enclosure from becoming "brittle" and provides for a gentler illumination of the products. Better still, LED lighting does not attract any flies(insects).
LED lamps are more expensive upfront!....LED lamps are slightly more costly than conventional lamps.However, this is only true as far as the purchasing price is concerned. You will find that the benefits of lower energy,installation and servicing costs as well as the long useful life afford you a quick return on your investment.
Notice on LED installation!...The heat generated by the LED lamp needs to be dissipated appropriately. This will extend the useful life and guarantee a high light output over the long run.
LED disposal!...LED lamps are plain electric scrap rather than hazardous waste such as fluorescent or halogen lamps or energy-efficient lamps which contain mercury.
LEDs - no maintenance costs!...Thanks to their long useful life LED lamps usually do not require a change of the illuminants
