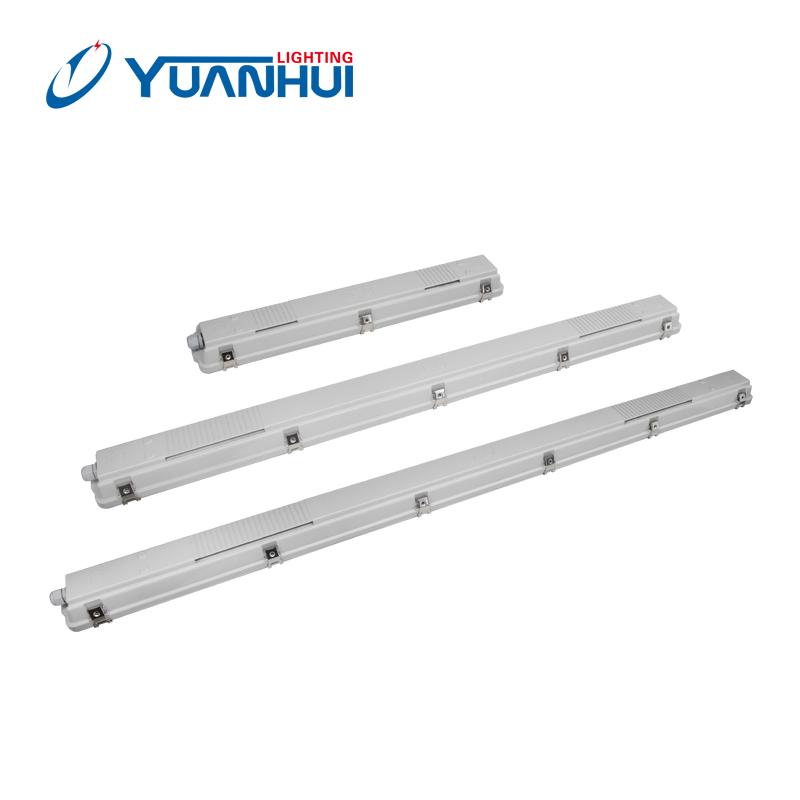

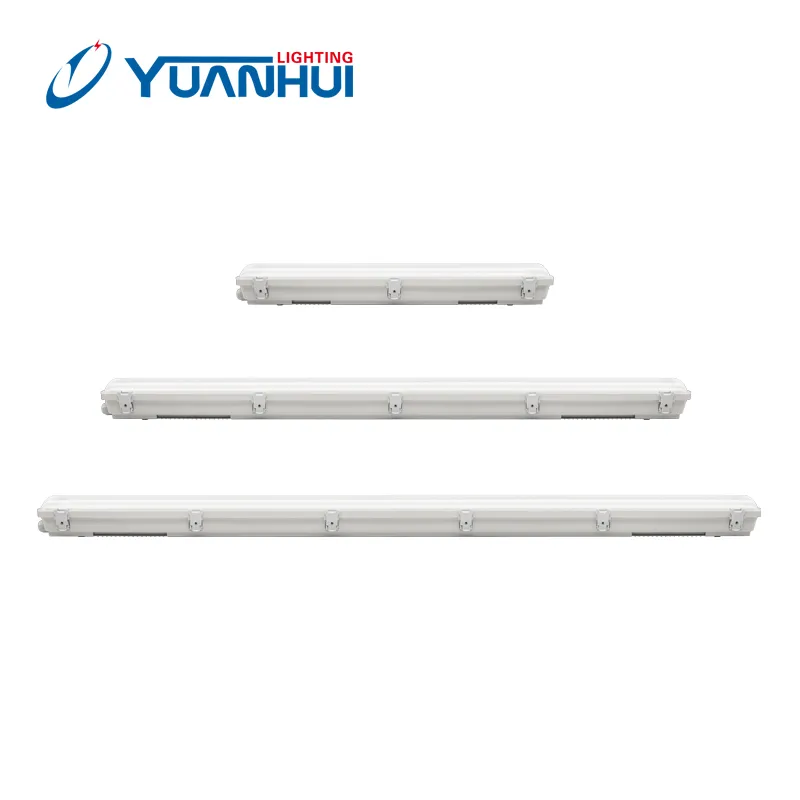

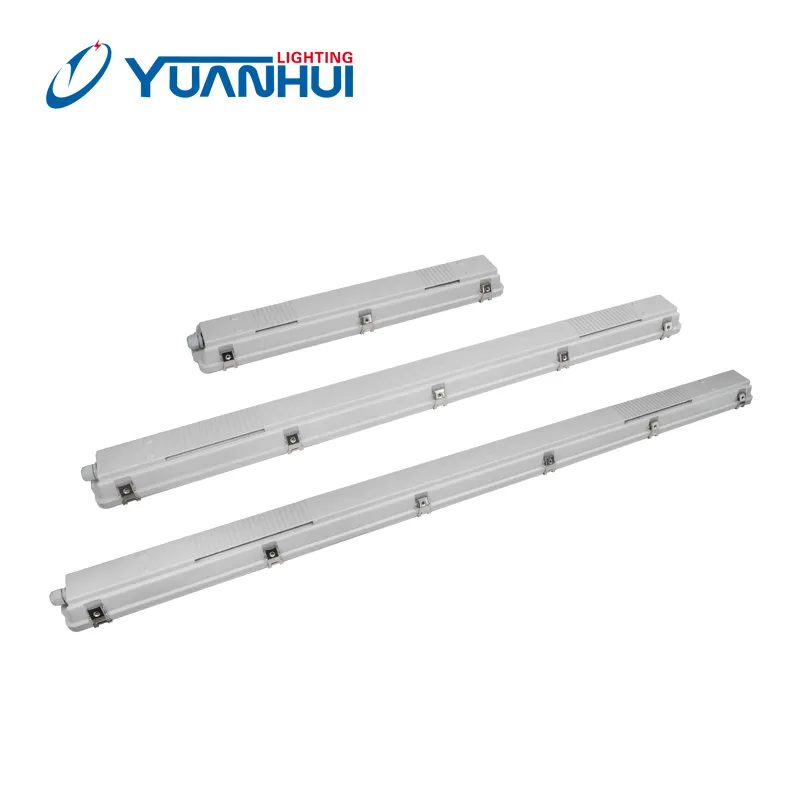

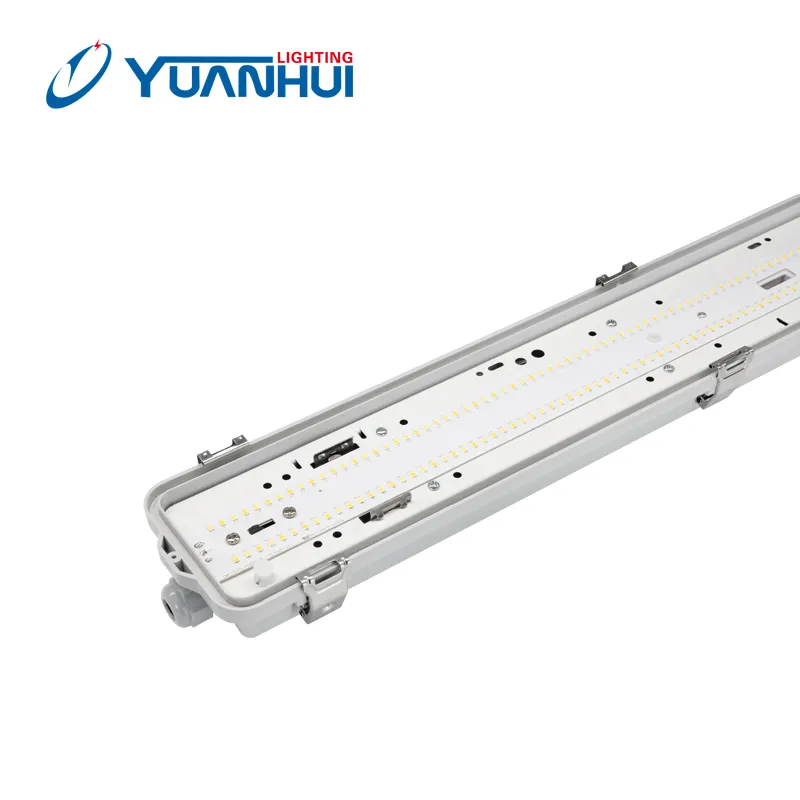

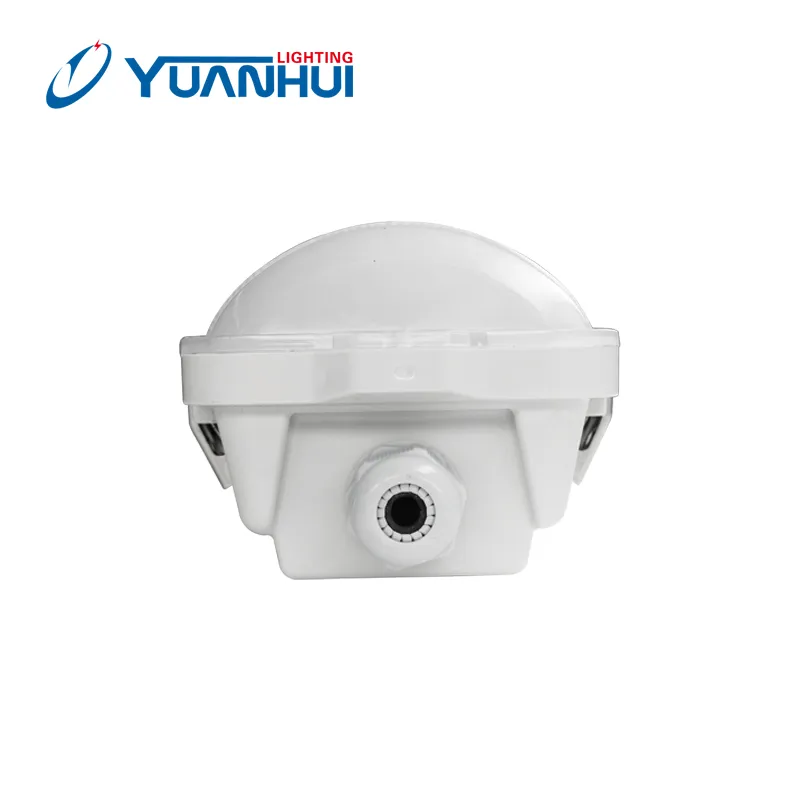

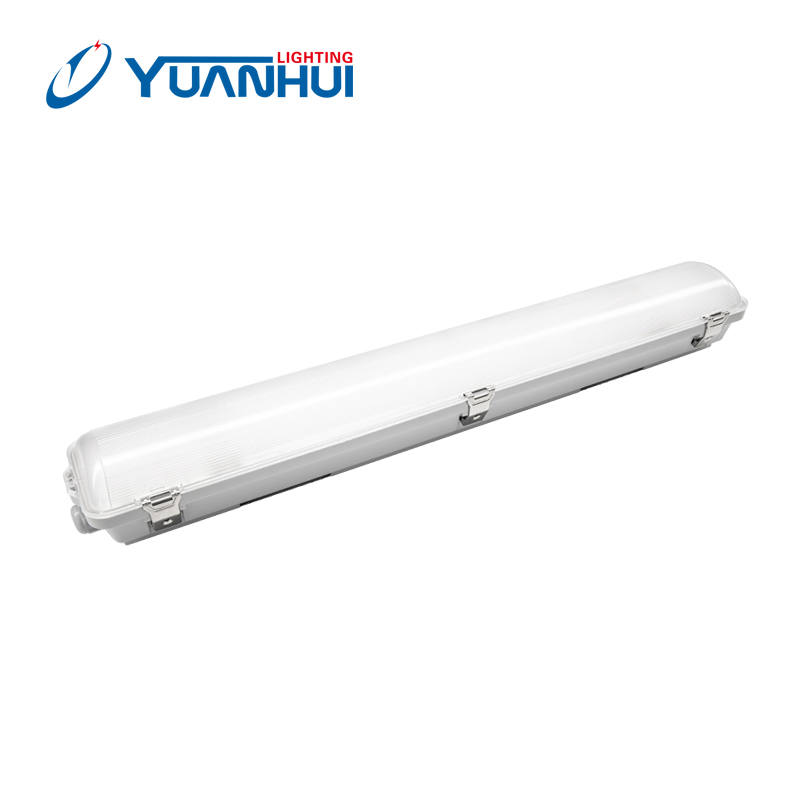

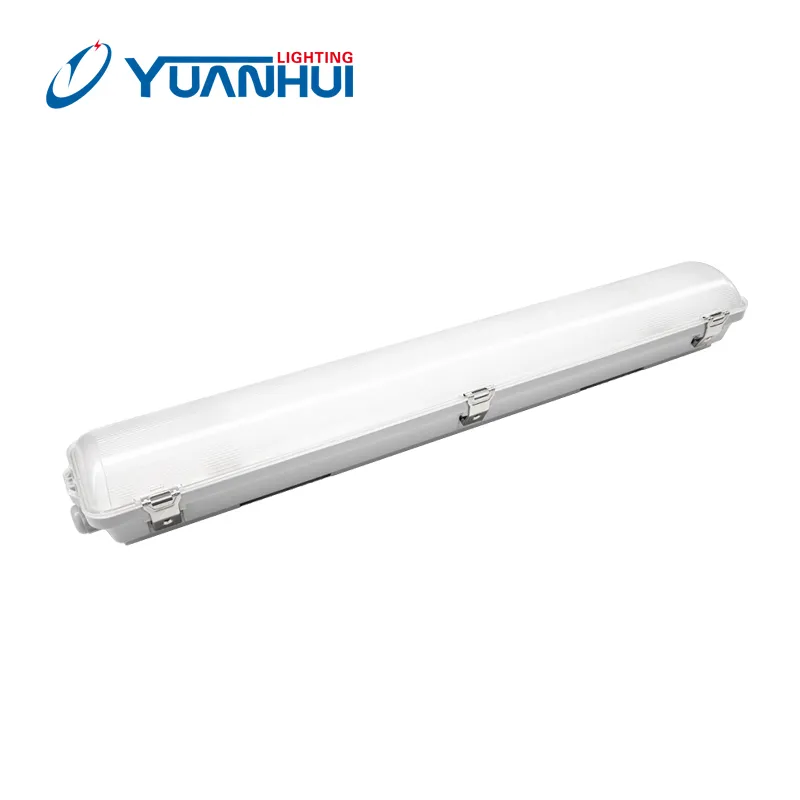

Residential Plastic Housing and Diffuser LED Tri-Proof Lamp
IP66 LED Module Waterproof LuminaireProduct Description:Input: AC 100-270V, 50-60HZDriver: OSRAM, Meanwell or other optionsReflector: MCPCB or High temperature resistant PCB for your optionBody and diffuser could meet the IK08, and 850 degree glow wire test requirementPerfect replacement for the w......
Send Inquiry
Product Description
IP66 LED Module Waterproof Luminaire
Product Description:
Input: AC 100-270V, 50-60HZ
Driver: OSRAM, Meanwell or other options
Reflector: MCPCB or High temperature resistant PCB for your option
Body and diffuser could meet the IK08, and 850 degree glow wire test requirement
Perfect replacement for the whole set of T8 fluorescent Luminaire.
Save uo to 60% in electricity consumption compared to fluorescent lighting fixture
Lifetime:50000hrs, Warranty: 5 years
It could be with sensor (turn on/off sensor, dim sensor), emergency kit.
suitabel for supermarket, underground parking, warehouse, function well in waterproof and dustproof, suitable for outdoor and wet location lighting application
Techinical Parameters:
Production Workflow Chart:
Factory review:
FAQ:
Q1: Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What is the lead time?
A2: Samples need 3-5 working days, mass products need 7-10 days.
Q3: Do you have any MOQ limit for led light order?
A3: Low MOQ, 1pc for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to proceed an order for led light?
A5: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6: Is it OK to print my logo on led light product?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Product Description:
Input: AC 100-270V, 50-60HZ
Driver: OSRAM, Meanwell or other options
Reflector: MCPCB or High temperature resistant PCB for your option
Body and diffuser could meet the IK08, and 850 degree glow wire test requirement
Perfect replacement for the whole set of T8 fluorescent Luminaire.
Save uo to 60% in electricity consumption compared to fluorescent lighting fixture
Lifetime:50000hrs, Warranty: 5 years
It could be with sensor (turn on/off sensor, dim sensor), emergency kit.
suitabel for supermarket, underground parking, warehouse, function well in waterproof and dustproof, suitable for outdoor and wet location lighting application
Techinical Parameters:
| Model No | LMF12-600 | LMF24-600 | LMF24-1160 | LMF36-1160 | LMF48-1160 | LMF34-1560 | LMF54-1560 | LMF70-1560 |
| Power (w) | 12w | 24w | 24w | 36w | 48w | 34w | 54w | 70w |
| Product Size | 600*120*108mm | 1160*120*108mm | 1560*120*108mm | |||||
| Efficiency (lm/w) opal len | 100lm/w | |||||||
| CCT (K) | 2700-6500K | |||||||
| Certificates | CE-LVD, EMC, ROHS, GS, ENEC, CB, SAA, C-TICK, UL, CUL, DLC | |||||||
| LED chips | SAMSUNG or EVERLIGHT | |||||||
| LED driver | OSRAM or MEANWELL | |||||||
| CRI | >83 | |||||||
| Bean Angel | 120 degree | |||||||
| Operating Ambient temperature | -20~40ºC | |||||||
| Operating Humidity | 10-90% | |||||||
| Warranty | 5 years | |||||||
| IP | IP66 | |||||||
| IK | IK08 | |||||||
| Glow Wire Test | Pass 850ºC | |||||||
| Material | Polycarbonate Material | |||||||
Production Workflow Chart:
Factory review:
FAQ:Q1: Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What is the lead time?
A2: Samples need 3-5 working days, mass products need 7-10 days.
Q3: Do you have any MOQ limit for led light order?
A3: Low MOQ, 1pc for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to proceed an order for led light?
A5: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6: Is it OK to print my logo on led light product?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
