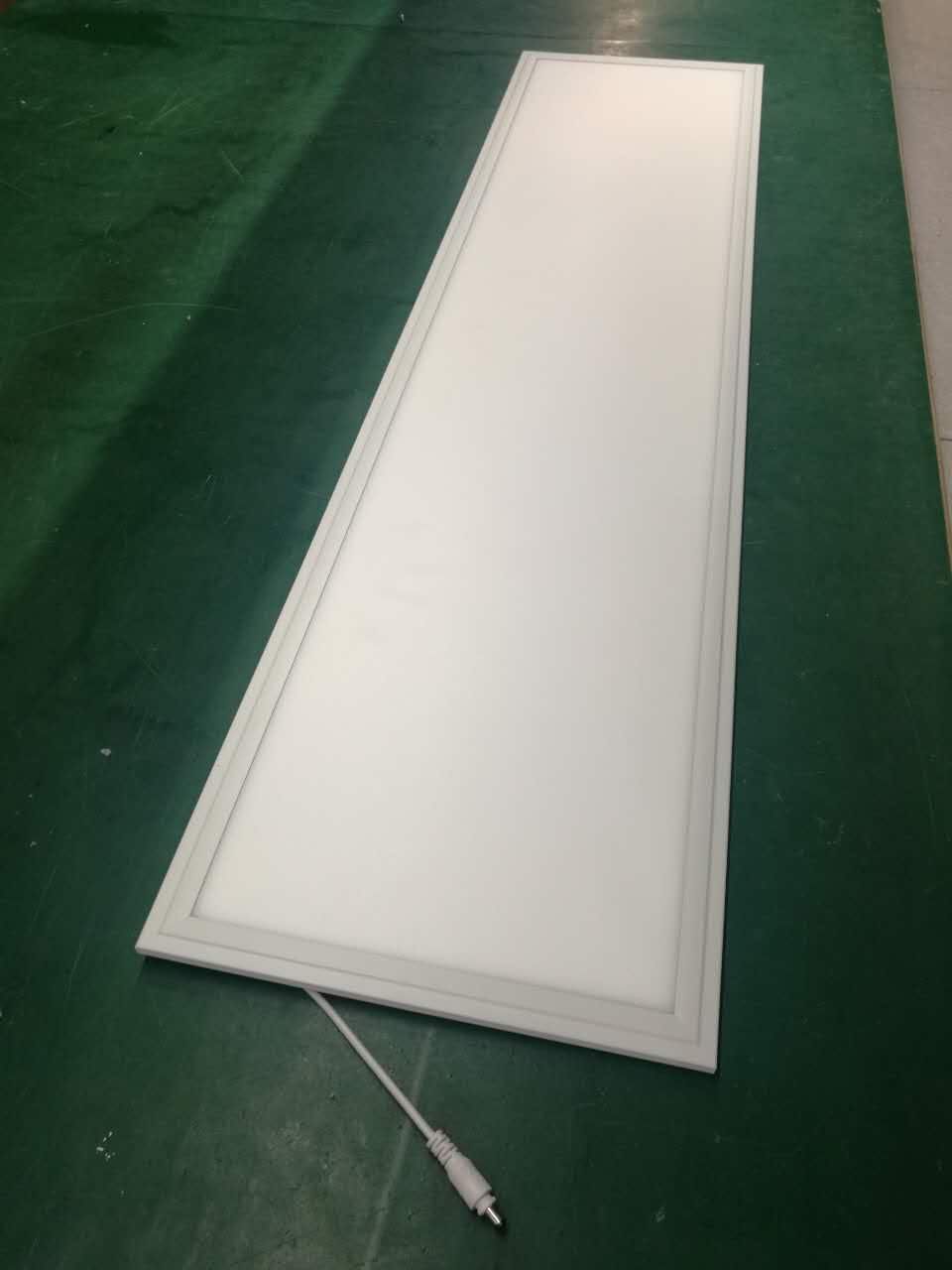

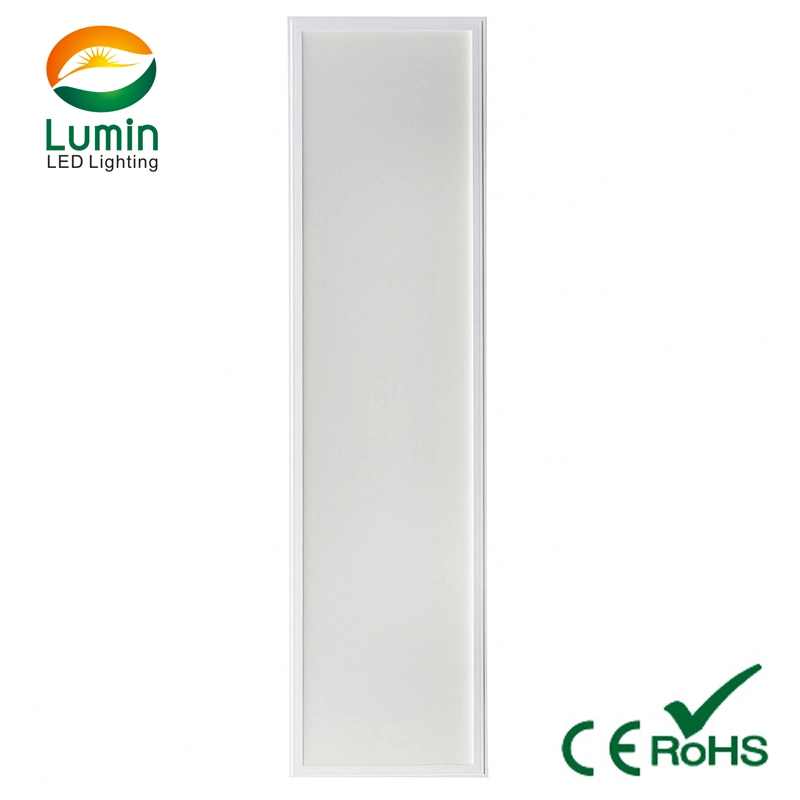

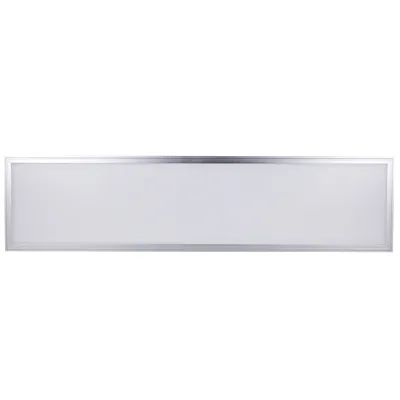

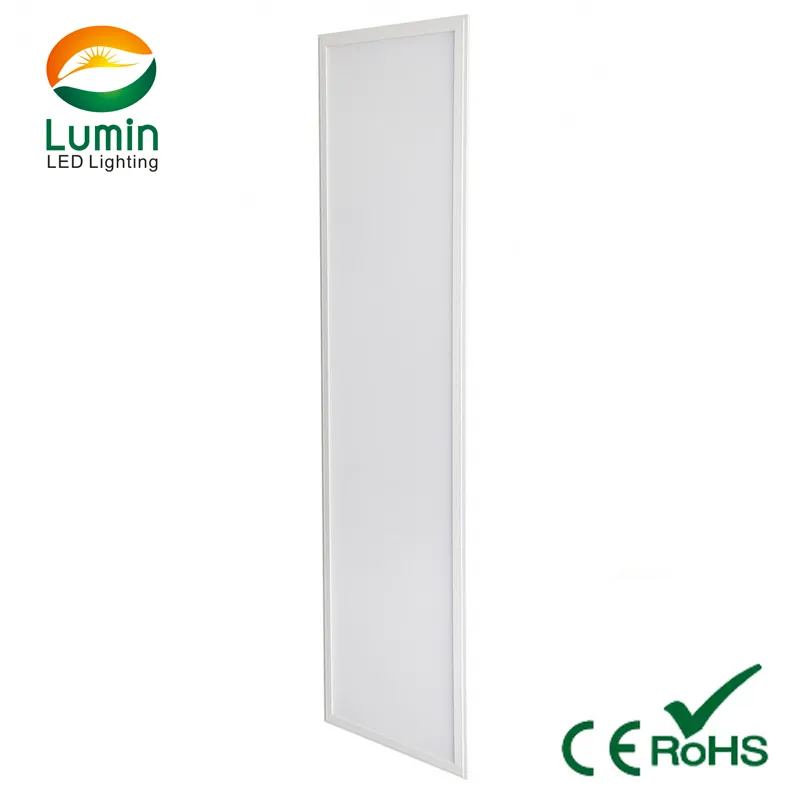

60W CRI>90 Ugr<19 1195 *295mm LED Panel Light

60W CRI>90 Ugr<19 1195*295mm LED Panel Light




Specification

Features:

Structure & Material
·9 mm super slim design. White / silver finish for frame surface treatment
·High hardness aero aluminum alloy material 6063
·Good heat dissipation, weighed 400G
·IP rates 40,used indoors
LED & Optics
·LM-80 listed LEDs realize high luminous efficacy & low optical decay
·50,000 hours design lifespan, 6 times than fluorescent tube
·High transmittance PMMA Light Guide Plate
·Optical fire-resistant PC diffuser
·Beam Angle: 120º
Electrics
·High efficiency power supply, ENEC listed
·Input Voltage: AC100-240V, 50/60Hz
·Power Factor: >0.98
·Dimming solutions can be customized
Environmentally friendly
·No glare, mercury, ultraviolet, infrared or other hazardous substances
·Working Temperature: -25ºC to 55ºC

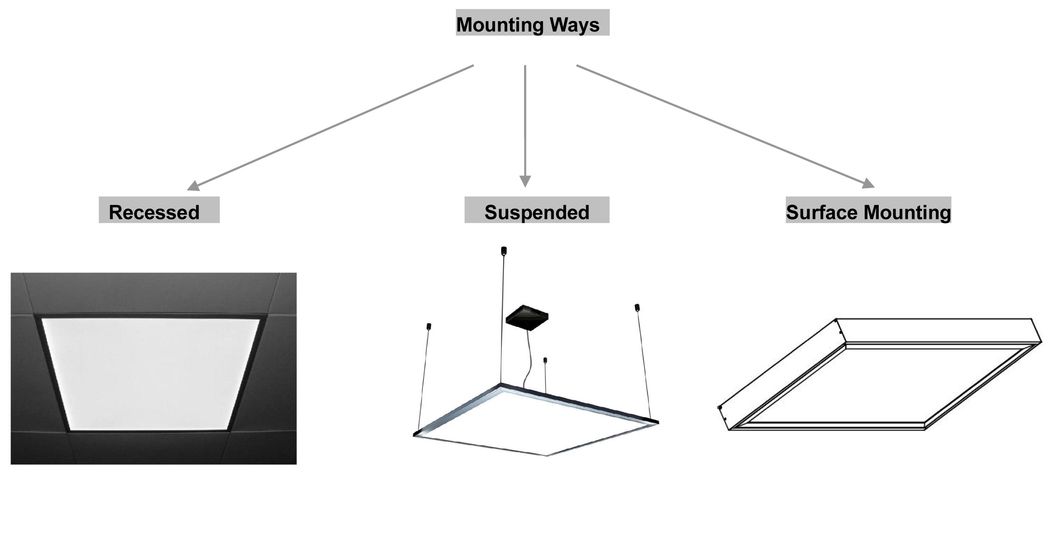

 Installation



1. Fixtures must be operated by a licensed electrician.
2. Check if fixtures are sloid and in good condition once packaging is open.
3. Do not let fixture fall down from ceiling system or clash to hard stuff.
4. Make sure that the cable of fixture is long enough to connect. Do not knot or pull the cable strongly while wiring.
5. Do connect input end of fixture to output end of LED driver.
6. Wiring must be firm and tight with insulation protection well. Be aware of electricity shock.
7. Keep fixture and LED driver away from water or liquid, free from electric leakage and electricity shock.
8. Must use LED driver approved by Lumin, otherwise, fixtures may not work normally, and may be damaged, may cause unexpected incidents. Lumin will not bear any responsibilities due to such deeds.

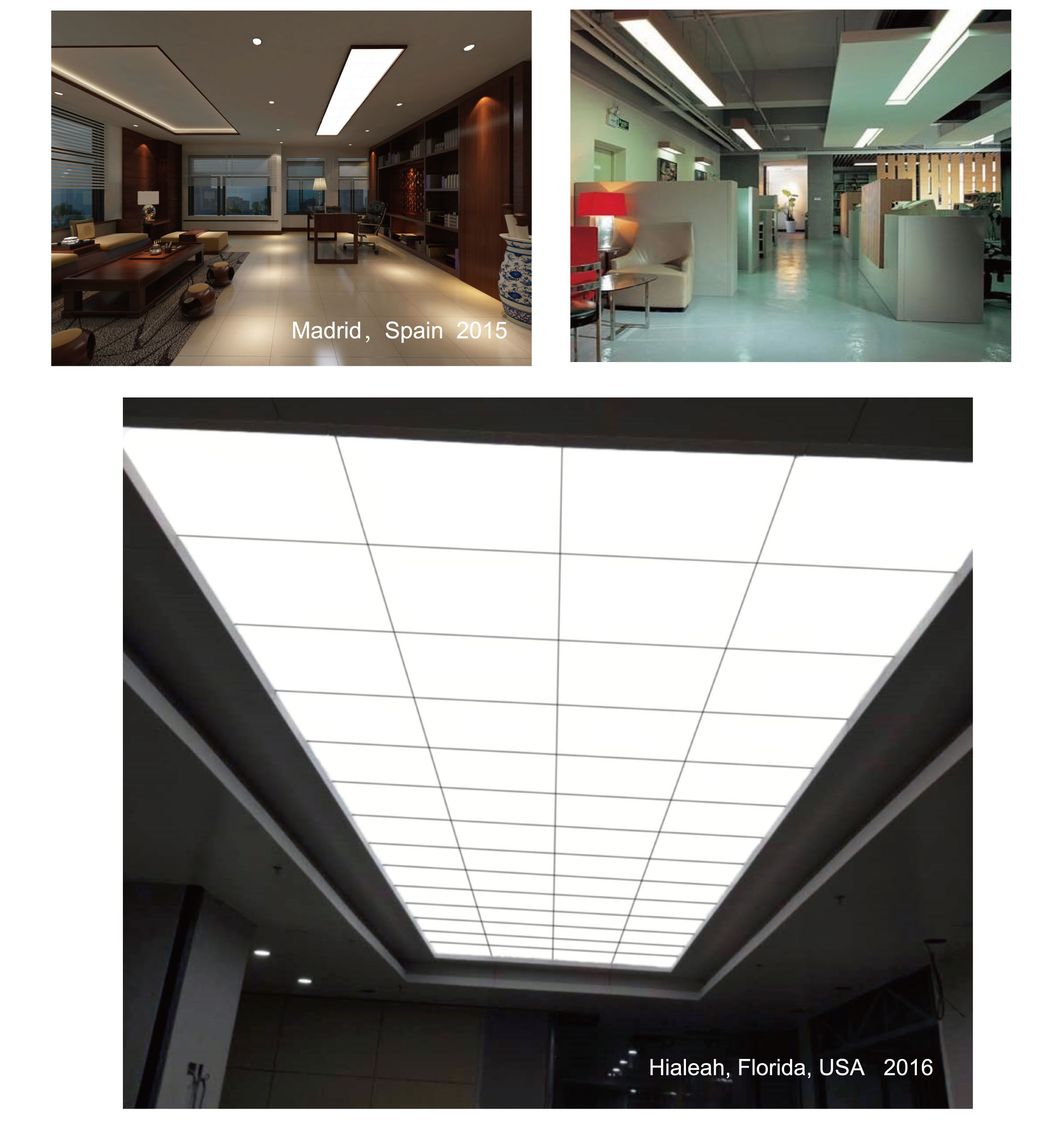

Applications& Project:
Applications: It is widely used in the offices, workshops, shopping malls, schools, libraries, hospitals, hotels,
retail outlets, living rooms, airports, entertainment spaces, etc

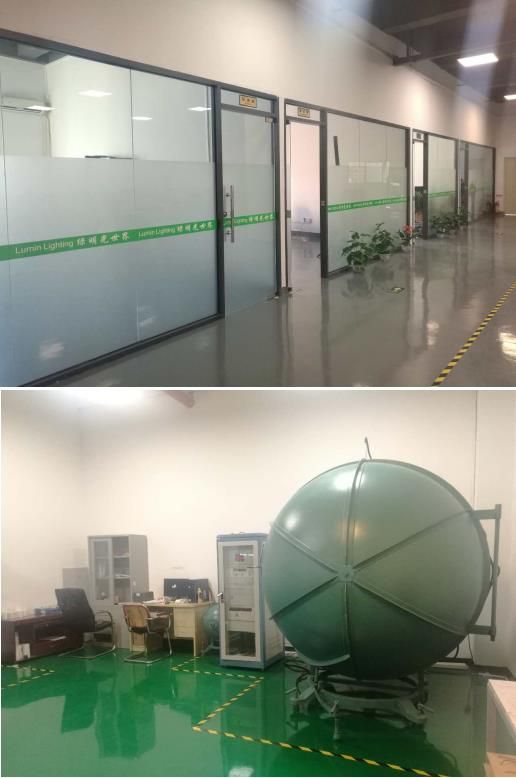

Lumin Led Lighting


Founded in 2008 an based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting has provided quality LED lighting products and green lighting solutions to many Europen countries and America. LED panel light, LED pendant light, and LED downlight is included in key product line and customized lighting solutions is provided.
By seriously carrying out ISO 9001 Quality System and ISO Environment Management System,the quality is guaranteed. Our products have been awarded with certificates of TUV CE, RoHS, SAA,CB, UL, and DLC.

Best service
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: all can be customized;
(5) Distributor, agent, investor and more are welcome;
(6)  3 year limited warranty: spare parts can be offered along with orders.
