Product Description

Features:
1. Energy efficient and eco-friendly with LED light source;
2. High lumen output, high color rendering, soft light;
3. Long lifespan, less maintenance;
4. Easy installation.

Recessed Backlit LED Panel Light Series Specifications:

Item No.	Power	Flux	Dimensions	Carton Size (cm)	PCS/CTN
BN-LJC40A-1	36 W	3300 LM	595x595x55 mm / 600X600X55 mm	65.5x39x65.5	6
BN-LJC40A-2	36 W	3200 LM	1195x295x55 mm / 1200x300x55 mm	126x26.5x35.5	4
BN-LJC80A-2	72 W	7000 LM	1195x595x55 mm / 1200x600x55 mm	126x66x17.5	2

Material: Iron, Aluminium, PMMA
Shape: Rectangular
Input Voltage: 100-130Vac; 200-240Vac; 277Vac
Dimensions: 1195x295x55mm (Type 1); 1200x300x55mm (Type 2)
Rated Power: 36W
Flux: 3300lm
Luminous Efficacy: 100lm/W
Color Temperature: 3000/4000/5000/6000K
CRI: >80
Beam Angle: 120°
IP Rating: IP20
Driver: Constant current
PF: >0.95
Finish: A-White; B-Silver
Installation: Embedded
Applicaton: Residential and Commercial Projects
Lifespan: 50,000 hours
Warranty: 3 years
Carton Size: 126x35.5x17.5cm/2PCS

Recessed LED Panel Light Back-Lit Troffer 1X4 FT 300X1200mm 36W 4000K Nature White 100lm/W

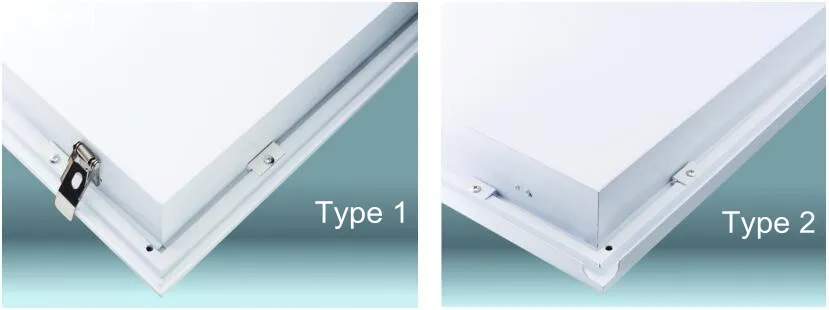

Two types to fit different ceiling:
Recessed LED Panel Light Back-Lit Troffer 1X4 FT 300X1200mm 36W 4000K Nature White 100lm/W

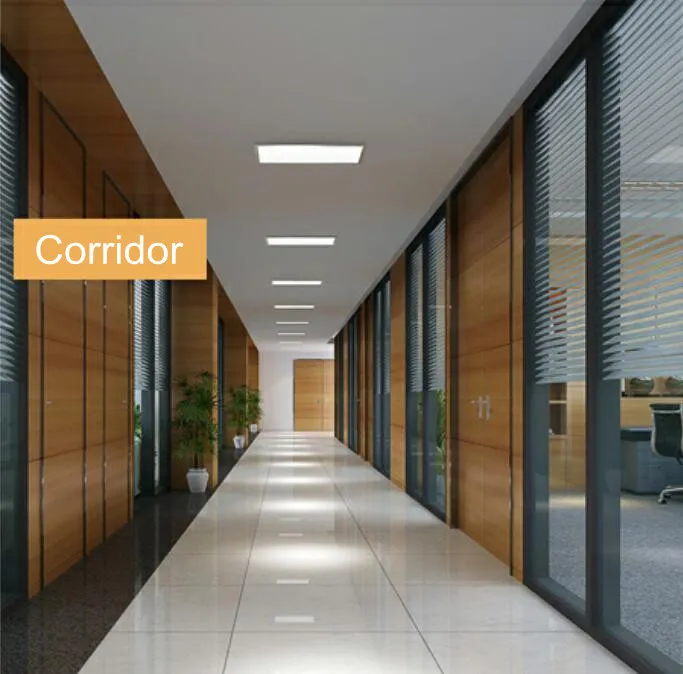

Application:
Recessed LED Panel Light Back-Lit Troffer 1X4 FT 300X1200mm 36W 4000K Nature White 100lm/W

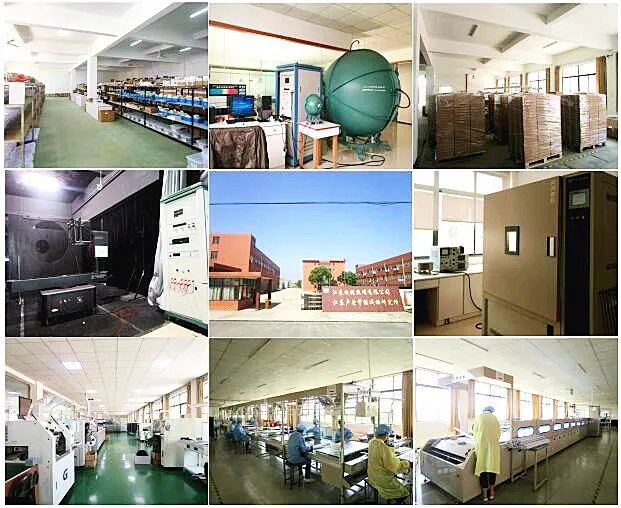

SHINUO LIGHTING Company Profile:
Recessed LED Panel Light Back-Lit Troffer 1X4 FT 300X1200mm 36W 4000K Nature White 100lm/W

History: Established in 1998.
Products: LED lighting, Low frequency induction lighting, Fluorescent lighting.
Certificates: ISO9001, ISO14001, ISO45001, CCC, CQC, CE, FCC.
