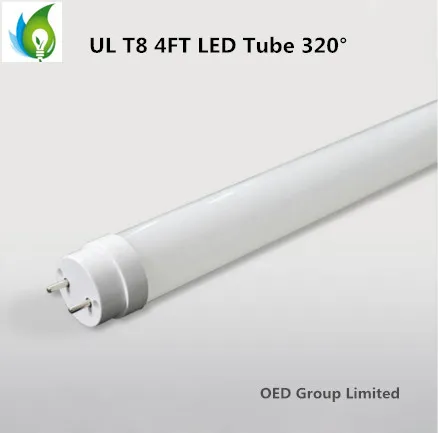

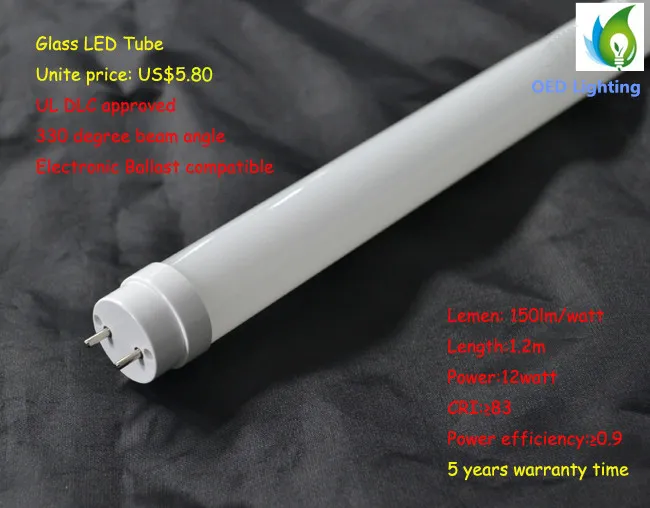

5 Year Warranty UL Listed T8 12W Glass LED Tube with 100-277VAC and 150lm/W

UL Listed compatible T8 18W Glass LED Tube with 100-277VAC and 150LM/W


Model No. OED-GUL-4FT-12
Watt: 18W
Size: D26 * H. 1198mm
CRI. Ra.>80
Lumens: 1800LM
Fire rating: V2
LED Quantity: 5630SMD Epistar brand
With Electonic ballast compatible
Price depends on order size, 100pcs, 500pcs, 2000pcs and 5000pcs different.

Beam angle: 330 degree;
CCT: 3000K, 4200K, 6000K available;
Warranty: 5 years;
Quality:  UL, DLC, CE ROHS standard;
Lifetime > 50,000 hours.


MOQ: 25pcs;

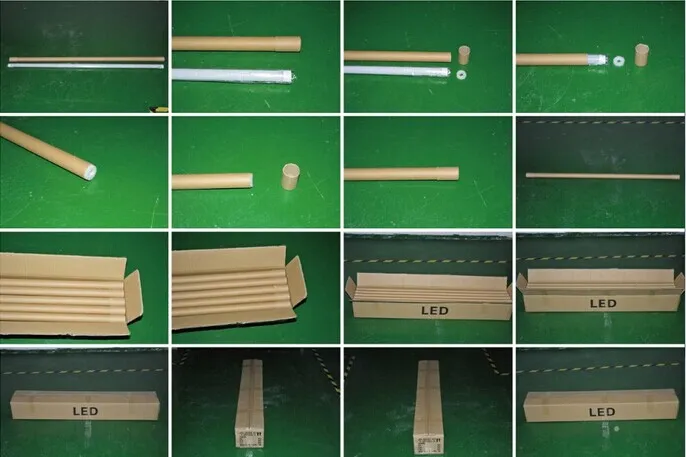

Packing: neutral packing for normal, and OEM design available with extra cost;
Delivery time:  5-7 days for samples, and 20 days for big order;
Payment: western union, Paypal, TT bank transfer, 30% deposit in advance, 70% balance paid before delivery.


Introduction:
Green lamp without Pb and Hg. Using Hi-quality, Hi-brightness LED as lighting source, free from glare and flicker, and has average luminous surface. Adopting  lampshade materials with more than 90% light transmittance. Using good aluminum alloy shell to speed up heat diffusion. Lifespan is on average over 50,000hrs, 10 times longer than traditional lamps. It could be installed without ballast and starter, connecting directly on 85~277V voltage.

Application: Widely used in lighting indoor, such as office building, market, factory, school, hospital, hotel, etc.

Feature: No Pb,Hg or other pollution elements, 70% energy saving compared with traditional lamps.


1. Installation



Above picture is the installation diagram of led tube light.
a) Remove starter and ballast before installation.
b) To labeled end tip of LED fluorescent tube and turn on AC power.

2. Warning Note
a) Working Voltage: AC100V~277V 50/60Hz.
b) This product is prohibited material immersed in liquid.
c) The tube is designed for moisture-proof use only. Don't put it into water.
d) It's normal that the device will delay starting 2 seconds due to carrier charging after the turning on.
